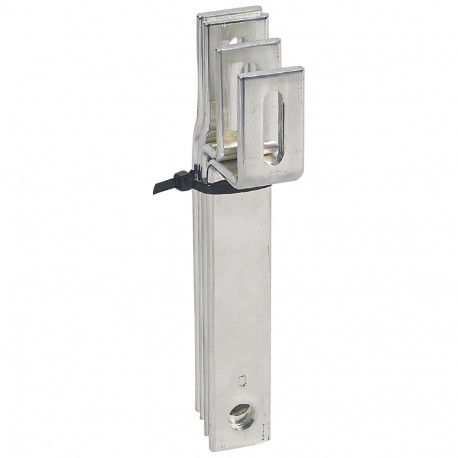

LEGRAND 404454 404454 LEGRAND KIT CONNECTION DPX 630 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

404454 LEGRAND KIT CONNECTION DPX 630

404454

404454

LEGRAND

1 Pcs.

KIT CONNECTION DPX 630 Kit for connection of DPX3 630 in cell side insulation cell side Kit for connection of DPX³ 630 in side cell to side cell busbar

Automation > Busbar
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 404454 LEGRAND KIT CONNECTION DPX 630 is an interface and connection kit engineered to securely link high-current circuit breakers to busbar distribution networks. Connection assemblies of this nature are vital in heavy industrial switchboards for ensuring low-resistance power transfer into main protective devices.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Flat
  • Surface protection (EF000139): Untreated
  • Rated current In (EF008250): 630 A
  • Flexible (EF000083): No

More info

▲

Product features

Set connection pre-fabricated - copper Bars rigid, prepared for the connection of devices on the busbar of aluminium 250/400 TO VX3 - supplied with hardware For connection of an appliance in cell side to a busbar in the cell side - For DPX3 630 (In <= 400A) with or without differential +X1383

General characteristics

Vertical distribution VX3 optimized - up to 400 A in cabinet XL3 400

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
