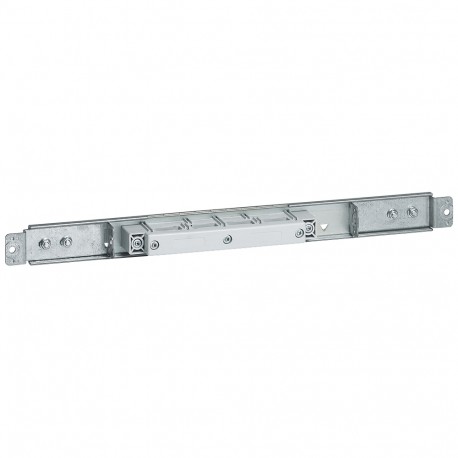

LEGRAND 404450 404450 LEGRAND SUPPORT AISL BAR ALU C View larger
Images are for illustrative purposes only. Please refer to data sheet for details

404450 LEGRAND SUPPORT AISL BAR ALU C

404450

404450

LEGRAND

1 Pcs.

SUPPORT AISL BAR ALU C Support insulator 250/400 TO VX3 for aluminum bars in C 250/400A VX³ Insulating Bracket for Aluminium C-Bars

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 404450 is a 404450 LEGRAND SUPPORT AISL BAR ALU C employed within switchgear assemblies to isolate and mechanically support conducting busbars. Insulating supports prevent electrical faults by maintaining safe dielectric clearances between live metal components and the enclosure frame. Precise pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Mounting bar
  • Material (EF002169): Plastic
  • Colour (EF000007): White
  • RAL-number (EF000116): 7035

More info

▲

Product features

Busbars of aluminum 250/400 TO VX3 - Bars C of aluminium with copper tinned, inserted into a bottom insulator and secured by brackets insulators - Wheelbase of bars 43 mm Busbar of aluminium in cell side - mounted cell-side external XL3 400 or cell lateral internal XL3 800 - Support insulator for aluminum bar in C

General characteristics

Vertical distribution VX3 optimized - up to 400 A in cabinet XL3 400
