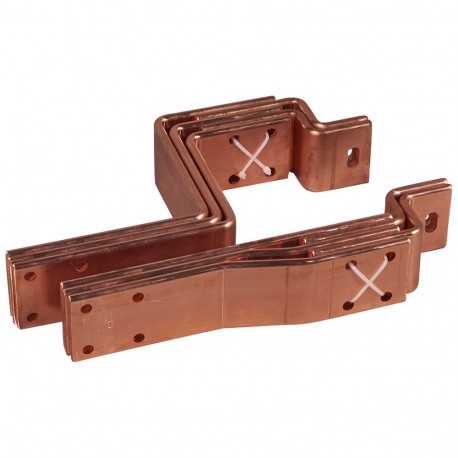

LEGRAND 404370 404370 LEGRAND KIT CONEX DMX3 T1 SEC TRANSFER View larger
Images are for illustrative purposes only. Please refer to data sheet for details

404370 LEGRAND KIT CONEX DMX3 T1 SEC TRANSFER

404370

404370

LEGRAND

1 Pcs.

KIT CONEX DMX3 T1 SEC TRANSFER Kit connection DMX3 size 1, version seccionable, with a busbar horizontal Connected kit. DMX³ size 1 version sect. with horizontal busbar

Automation > Busbar
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand kit connection is a specialized mechanical and electrical accessory designed for linking heavy-duty circuit breakers and switchgear assemblies within major power distribution infrastructure. Such kits ensure secure mechanical mounting and uninterrupted current flow in complex electrical switchboards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Flat
  • Surface protection (EF000139): Untreated
  • Rated current In (EF008250): 2500 A
  • Flexible (EF000083): No

More info

▲

Product features

Connection set DMX3 - busbar horizontal bars of aluminium in C - Bars of copper folded and perforated for the connection of a DMX3 with a busbar aluminum horizontal transfer, wheelbase 75 mm - busbar can be installed indifferently up or down For DMX3-size 1 - 1000 to 2500 a - To Be mounted in cabinets XL3 4000 of 725 mm and 975 mm depth - For version seccionable - 1 bar/pole up to 1600 A

General characteristics

Connection sets VX3 optimized - up to 4000 in cabinets XL3 4000
