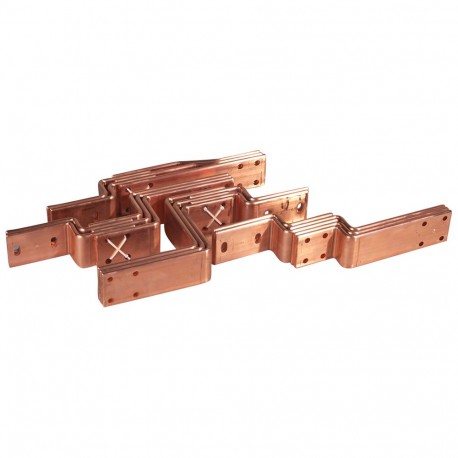

LEGRAND 404366 404366 LEGRAND KIT CONEX DMX3 T1 SEC TRANSFER View larger
Images are for illustrative purposes only. Please refer to data sheet for details

404366 LEGRAND KIT CONEX DMX3 T1 SEC TRANSFER

404366

404366

LEGRAND

1 Pcs.

KIT CONEX DMX3 T1 SEC TRANSFER Kit connection DMX3 talla1, version seccionable, with a busbar horizontal DMX³ connection kit size1 section version. with horizontal busbar

Automation > Busbar
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 404366 LEGRAND KIT CONEX DMX3 T1 SEC TRANSFER provides mechanical and electrical interconnection hardware designed specifically for automated transfer switching configurations involving high-capacity air circuit breakers. Connection kits ensure proper alignment and secure bus connections during power source transitions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Flat
  • Surface protection (EF000139): Untreated
  • Rated current In (EF008250): 2500 A
  • Flexible (EF000083): No

More info

▲

Product features

connection sets DMX3 - busbar horizontal bars of aluminium in C - Bars of copper folded and perforated for the connection of a DMX3 with a busbar aluminum horizontal transfer, wheelbase 75 mm - busbar can be installed indifferently up or down For DMX3-size 1 - 1000 to 2500 a - To Be mounted in cabinets XL3 4000 of 725 mm and 975 mm depth - For version seccionable - 2 bars/pole from 1600 to 2000

General characteristics

Connection sets VX3 optimized - up to 4000 in cabinets XL3 4000
