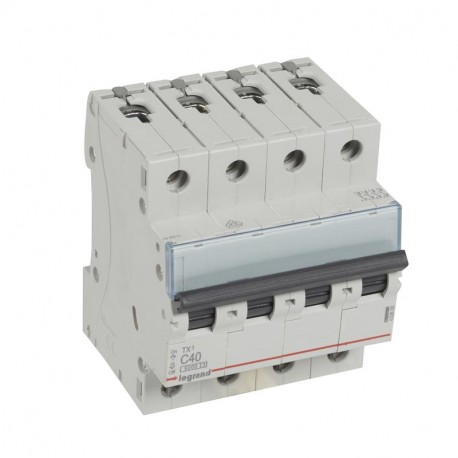

403630 LEGRAND MAGNET TX3 6KA C 4P 40A
403630
403630
LEGRAND
1 Pcs.
MAGNET TX3 6KA C 4P 40A
MCB TX³ 6000 - 4P 400 V~ - 40 A - C curve - prong-type supply busbars
TX³ Circuit Breaker - 4P - 400V~ - 40A - C curve - 4mod
Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A LEGRAND MAGNET TX3 6KA C 4P 40A acts as a dependable multi-pole circuit protection device designed to safeguard electrical wiring networks against excess current demands and fault conditions.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Explosion-proof (EF004663): No
- Degree of protection (IP) (EF005474): IP20
- Concurrently switching neutral conductor (EF005997): Yes
- Voltage type (EF000187): AC
- Additional equipment possible (EF008148): Yes
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Number of protected poles (EF005548): 4
- Frequency (EF000416): 50 Hz
- Built-in depth (EF000218): 44 mm
- Number of poles (total) (EF008618): 4
- Pollution degree (EF002570): 2
- Width in number of modular spacings (EF002950): 4
- Rated insulation voltage Ui (EF001366): 500 V
- Rated current (EF000227): 40 A
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): Yes
More info
▲- Pack (number of units)1
- Volume (dm3)0.701
- Weight (g)541.00
Product characteristics
4-pole 400 V~- C curve
- Nominal rating In : 40 A
- Number of modules : 4
General characteristics
MCBs TX³ 6000 - thermal magnetic MCBs from 6 A to 63 A - C curve- Conform to IEC 60898-1
- Compatible with prong-type supply busbars
- Breaking capacity:
- 6000 - IEC 60898-1 - 230/400 V~
- 6 kA - IEC 60947-2 - 230/400 V~
- Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
- Do not accept add-on modules
