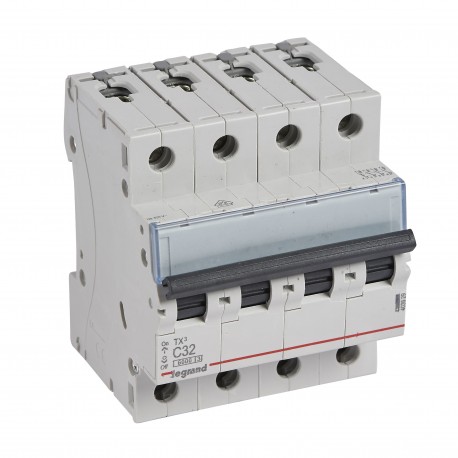

LEGRAND 403629 403629 LEGRAND MAGNET TX3 6KA C 4P 32A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

403629 LEGRAND MAGNET TX3 6KA C 4P 32A

403629

403629

LEGRAND

1 Pcs.

MAGNET TX3 6KA C 4P 32A MCB TX³ 6000 - 4P 400 V~ - 32 A - C curve - prong-type supply busbars TX³ Circuit Breaker - 4P - 400V~ - 32A - C curve - 4mod

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 403629 LEGRAND MAGNET TX3 6KA C 4P 32A is a four-pole miniature circuit breaker designed to safeguard electrical systems by interrupting current flow during overload or fault scenarios. Protection devices of this class are standard elements in industrial and commercial distribution boards, ensuring operational safety and equipment longevity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): Yes
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 4
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 4
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 4
  • Rated insulation voltage Ui (EF001366): 500 V
  • Rated current (EF000227): 32 A
  • Current limiting class (EF002568): 3
  • Flush-mounted installation (EF007517): Yes

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.701
  • Weight (g)546.00
Product characteristics
4-pole 400 V~
  • C curve
  • Nominal rating In : 32 A
  • Number of modules : 4
General characteristics
MCBs TX³ 6000 - thermal magnetic MCBs from 6 A to 63 A - C curve
  • Conform to IEC 60898-1
  • Compatible with prong-type supply busbars
  • Breaking capacity:
    • 6000 - IEC 60898-1 - 230/400 V~
    • 6 kA - IEC 60947-2 - 230/400 V~
  • Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
  • Do not accept add-on modules
