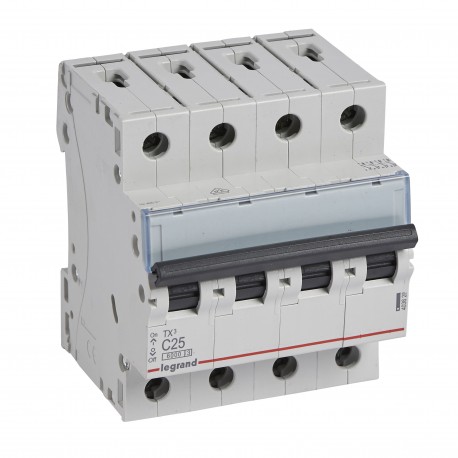

LEGRAND 403628 403628 LEGRAND MAGNET TX3 6KA C 4P 25A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

403628 LEGRAND MAGNET TX3 6KA C 4P 25A

403628

403628

LEGRAND

1 Pcs.

MAGNET TX3 6KA C 4P 25A MCB TX³ 6000 - 4P 400 V~ - 25 A - C curve - prong-type supply busbars TX³ Circuit Breaker - 4P - 400V~ - 25A - C curve - 4mod

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Power distribution reliability is secured by the 403628 LEGRAND MAGNET TX3 6KA C 4P 25A. Standard magnetic circuit breakers are essential protective elements in electrical switchboards, designed to interrupt overcurrent conditions and prevent wiring damage.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): Yes
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 4
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 4
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 4
  • Rated insulation voltage Ui (EF001366): 500 V
  • Rated current (EF000227): 25 A
  • Current limiting class (EF002568): 3
  • Flush-mounted installation (EF007517): Yes

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.701
  • Weight (g)430.00
Product characteristics
4-pole 400 V~
  • C curve
  • Nominal rating In : 25 A
  • Number of modules : 4
General characteristics
MCBs TX³ 6000 - thermal magnetic MCBs from 6 A to 63 A - C curve
  • Conform to IEC 60898-1
  • Compatible with prong-type supply busbars
  • Breaking capacity:
    • 6000 - IEC 60898-1 - 230/400 V~
    • 6 kA - IEC 60947-2 - 230/400 V~
  • Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
  • Do not accept add-on modules
