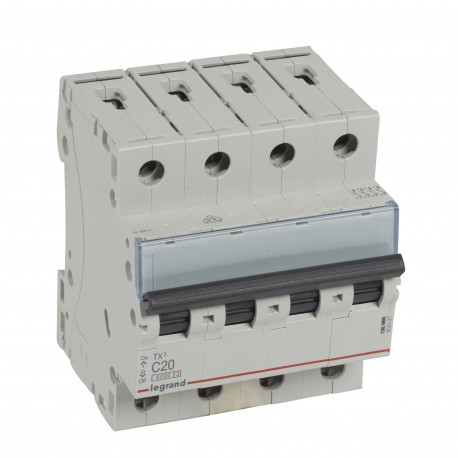

403627 LEGRAND MAGNET TX3 6KA C 4P 20A
403627
403627
LEGRAND
1 Pcs.
Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manage power distribution safely across modern industrial facilities utilizing the Legrand 403627 miniature circuit breaker. This four-pole thermal-magnetic component isolates faulty circuits quickly, preventing downstream equipment damage during electrical faults. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Explosion-proof (EF004663): No
- Degree of protection (IP) (EF005474): IP20
- Concurrently switching neutral conductor (EF005997): Yes
- Voltage type (EF000187): AC
- Additional equipment possible (EF008148): Yes
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Number of protected poles (EF005548): 4
- Frequency (EF000416): 50 Hz
- Built-in depth (EF000218): 44 mm
- Number of poles (total) (EF008618): 4
- Pollution degree (EF002570): 2
- Width in number of modular spacings (EF002950): 4
- Rated insulation voltage Ui (EF001366): 500 V
- Rated current (EF000227): 20 A
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): Yes
More info
▲- Pack (number of units)1
- Volume (dm3)0.701
- Weight (g)417.00
- C curve
- Nominal rating In : 20 A
- Number of modules : 4
- Conform to IEC 60898-1
- Compatible with prong-type supply busbars
- Breaking capacity:
- 6000 - IEC 60898-1 - 230/400 V~
- 6 kA - IEC 60947-2 - 230/400 V~
- Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
- Do not accept add-on modules
