View larger
Images are for illustrative purposes only. Please refer to data sheet for details

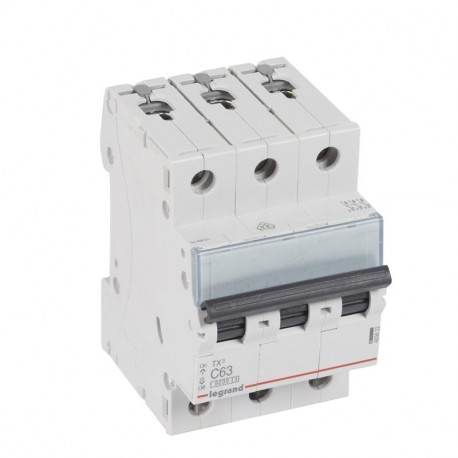

403622 LEGRAND MAGNET TX3 6KA C 3P 63A
403622
403622
LEGRAND
1 Pcs.
MAGNET TX3 6KA C 3P 63A
MCB TX³ 6000 - 3P 400 V~ - 63 A - C curve - prong-type supply busbars
MCB TX³ 6000A 3 poles 63A curve C
Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.521
- Weight (g)430.00
Product characteristics
3-pole 400 V~- C curve
- Nominal rating In : 63 A
- Number of modules : 3
General characteristics
MCBs TX³ 6000 - thermal magnetic MCBs from 6 A to 63 A - C curve- Conform to IEC 60898-1
- Compatible with prong-type supply busbars
- Breaking capacity:
- 6000 - IEC 60898-1 - 230/400 V~
- 6 kA - IEC 60947-2 - 230/400 V~
- Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
- Do not accept add-on modules
| Feature Name | Feature Value |
|---|---|
| Explosion-proof (EF004663) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (EF009556) | 10 kA |
| Concurrently switching neutral conductor (EF005997) | No |
| Voltage type (EF000187) | AC |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (EF009555) | 6 kA |
| Additional equipment possible (EF008148) | Yes |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (EF009558) | 6 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (EF009557) | 10 kA |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Number of protected poles (EF005548) | 3 |
| Frequency (EF000416) | 50 Hz |
| Built-in depth (EF000218) | 44 mm |
| Number of poles (total) (EF008618) | 3 |
| Pollution degree (EF002570) | 2 |
| Width in number of modular spacings (EF002950) | 3 |
| Rated insulation voltage Ui (EF001366) | 500 V |
| Rated current (EF000227) | 63 A |
| Current limiting class (EF002568) | 3 |
| Flush-mounted installation (EF007517) | Yes |
| Release characteristic (EF000889) | C |
| Rated voltage (EF000228) | 400 V |
