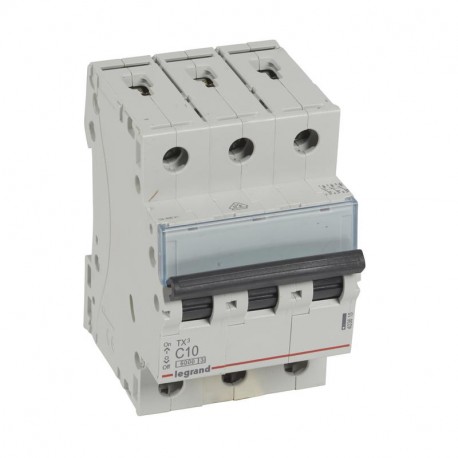

LEGRAND 403615 403615 LEGRAND MAGNET TX3 6KA C 3P 10A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

403615 LEGRAND MAGNET TX3 6KA C 3P 10A

403615

403615

LEGRAND

1 Pcs.

MAGNET TX3 6KA C 3P 10A MCB TX³ 6000 - 3P 400 V~ - 10 A - C curve - prong-type supply busbars TX³ Circuit Breaker - 3P - 400V~ - 10A - C curve - 3mod

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 403615 is a miniature circuit breaker engineered for reliable fault protection in commercial and light industrial electrical panels. This device interrupts excessive current flow automatically, helping to prevent wiring damage and electrical hazards. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): No
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 3
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 3
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 3
  • Rated insulation voltage Ui (EF001366): 500 V
  • Rated current (EF000227): 10 A
  • Current limiting class (EF002568): 3
  • Flush-mounted installation (EF007517): Yes

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.521
  • Weight (g)312.00
Product characteristics
3-pole 400 V~
  • C curve
  • Nominal rating In : 10 A
  • Number of modules : 3
General characteristics
MCBs TX³ 6000 - thermal magnetic MCBs from 6 A to 63 A - C curve
  • Conform to IEC 60898-1
  • Compatible with prong-type supply busbars
  • Breaking capacity:
    • 6000 - IEC 60898-1 - 230/400 V~
    • 6 kA - IEC 60947-2 - 230/400 V~
  • Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
  • Do not accept add-on modules
