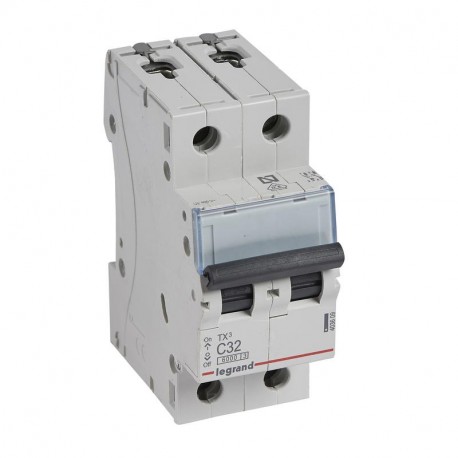

403609 LEGRAND MAGNET TX3 6KA C 2P 32A
403609
403609
LEGRAND
5 Pcs.
MAGNET TX3 6KA C 2P 32A
MCB TX³ 6000 - 2P - 230/400 V~ - 32 A - C curve - prong-type supply busbars
TX³ Circuit Breaker - 2P - 230/400V~ - 32A - C curve - 2mod
Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Legrand 403609 TX3 magnetothermal circuit breaker is designed to safeguard electrical installations against thermal overloads and short circuits, offering reliable fault interruption for commercial and light industrial applications.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Explosion-proof (EF004663): No
- Degree of protection (IP) (EF005474): IP20
- Concurrently switching neutral conductor (EF005997): No
- Voltage type (EF000187): AC
- Additional equipment possible (EF008148): Yes
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Number of protected poles (EF005548): 2
- Frequency (EF000416): 50 Hz
- Built-in depth (EF000218): 44 mm
- Number of poles (total) (EF008618): 2
- Pollution degree (EF002570): 2
- Width in number of modular spacings (EF002950): 2
- Rated insulation voltage Ui (EF001366): 500 V
- Rated current (EF000227): 32 A
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): Yes
More info
▲- Pack (number of units)5
- Volume (dm3)1.635
- Weight (g)1 000.00
Product characteristics
2-pole 230/400 V~- C curve
- Nominal rating In : 32 A
- Number of modules : 2
General characteristics
MCBs TX³ 6000 - thermal magnetic MCBs from 6 A to 63 A - C curve- Conform to IEC 60898-1
- Compatible with prong-type supply busbars
- Breaking capacity:
- 6000 - IEC 60898-1 - 230/400 V~
- 6 kA - IEC 60947-2 - 230/400 V~
- Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
- Do not accept add-on modules
