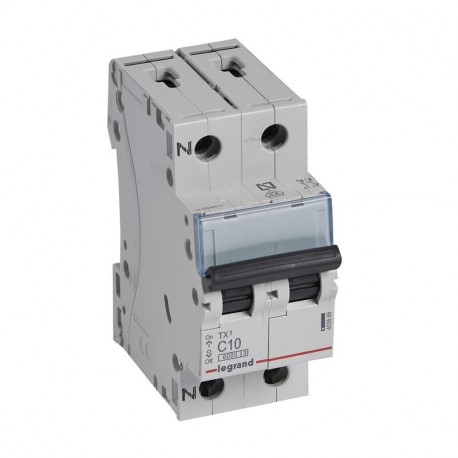

LEGRAND 403585 403585 LEGRAND MAGNET TX3 6KA C P+N 10A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

403585 LEGRAND MAGNET TX3 6KA C P+N 10A

403585

403585

LEGRAND

5 Pcs.

MAGNET TX3 6KA C P+N 10A MCB TX³ 6000 - 1P+N 230 V~ - 10 A - C curve - prong-type supply busbars Circuit breaker TX³ - 1P+N - 230V~ - 10A - curve C - 2mod

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

403585 LEGRAND MAGNET TX3 6KA C P+N 10A functions as a modular protective switch used in electrical distribution networks to safeguard circuits from overcurrent faults.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): Yes
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 1
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 2
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 2
  • Rated insulation voltage Ui (EF001366): 500 V
  • Rated current (EF000227): 10 A
  • Current limiting class (EF002568): 3
  • Flush-mounted installation (EF007517): Yes

More info

▲
  • Pack (number of units)5
  • Volume (dm3)1.635
  • Weight (g)1 034.00
Product characteristics
Single pole + neutral 230 V~
  • C curve
  • Nominal rating In : 10 A
  • Number of modules : 2
General characteristics
MCBs TX³ 6000 - thermal magnetic MCBs from 6 A to 63 A - C curve
  • Conform to IEC 60898-1
  • Compatible with prong-type supply busbars
  • Breaking capacity:
    • 6000 - IEC 60898-1 - 230/400 V~
    • 6 kA - IEC 60947-2 - 230/400 V~
  • Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
  • Do not accept add-on modules
