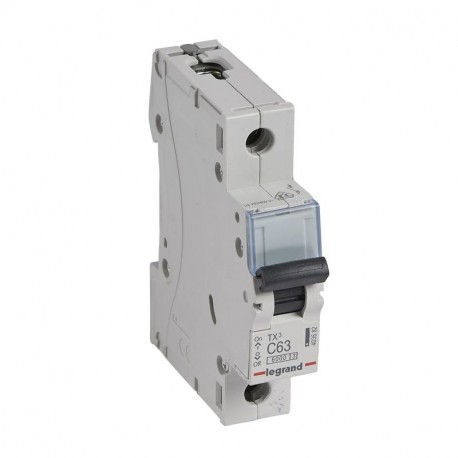

LEGRAND 403582 403582 LEGRAND MAGNET TX3 6KA C 1P 63A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

403582 LEGRAND MAGNET TX3 6KA C 1P 63A

403582

403582

LEGRAND

10 Pcs.

MAGNET TX3 6KA C 1P 63A MCB TX³ 6000 - 1P - 230/400 V~ - 63 A - C curve - prong-type supply busbars MCB TX³ 6000A 1 pole 63A curve C

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 403582 Magnet TX3 circuit breaker acts as an automatic electrical switch designed to protect distribution networks from overcurrents and short circuits. Such devices find widespread application in commercial and industrial electrical enclosures to ensure operational safety and prevent system failures.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): No
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 1
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 1
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 1
  • Rated insulation voltage Ui (EF001366): 500 V
  • Rated current (EF000227): 63 A
  • Current limiting class (EF002568): 3
  • Flush-mounted installation (EF007517): Yes

More info

▲
  • Pack (number of units)10
  • Volume (dm3)1.635
  • Weight (g)1 429.00
Product characteristics
Single pole 230/400 V~
  • C curve
  • Nominal rating In : 63 A
  • Number of modules : 1
General characteristics
MCBs TX³ 6000 - thermal magnetic MCBs from 6 A to 63 A - C curve
  • Conform to IEC 60898-1
  • Compatible with prong-type supply busbars
  • Breaking capacity:
    • 6000 - IEC 60898-1 - 230/400 V~
    • 6 kA - IEC 60947-2 - 230/400 V~
  • Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
  • Do not accept add-on modules
