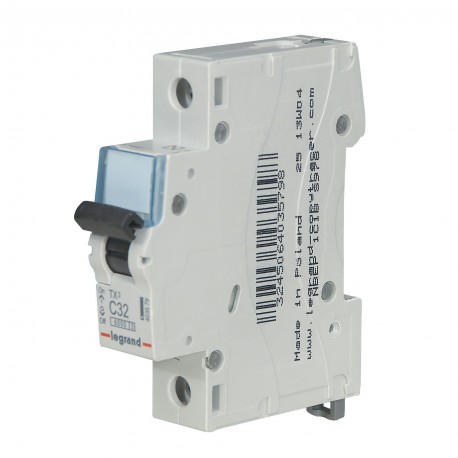

403579 LEGRAND MAGNET TX3 6KA C 1P 32A
403579
403579
LEGRAND
10 Pcs.
Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
403579 LEGRAND MAGNET TX3 6KA C 1P 32A is a miniature circuit breaker engineered to protect branch circuits against overloads and short circuits in commercial buildings and industrial control panels. These DIN-rail mounted switching devices isolate faulty circuits quickly to maintain overall system integrity and safety.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Explosion-proof (EF004663): No
- Degree of protection (IP) (EF005474): IP20
- Concurrently switching neutral conductor (EF005997): No
- Voltage type (EF000187): AC
- Additional equipment possible (EF008148): Yes
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Number of protected poles (EF005548): 1
- Frequency (EF000416): 50 Hz
- Built-in depth (EF000218): 44 mm
- Number of poles (total) (EF008618): 1
- Pollution degree (EF002570): 2
- Width in number of modular spacings (EF002950): 1
- Rated insulation voltage Ui (EF001366): 500 V
- Rated current (EF000227): 32 A
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): Yes
More info
▲- Pack (number of units)10
- Volume (dm3)1.635
- Weight (g)1 340.00
- C curve
- Nominal rating In : 32 A
- Number of modules : 1
- Conform to IEC 60898-1
- Compatible with prong-type supply busbars
- Breaking capacity:
- 6000 - IEC 60898-1 - 230/400 V~
- 6 kA - IEC 60947-2 - 230/400 V~
- Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
- Do not accept add-on modules
