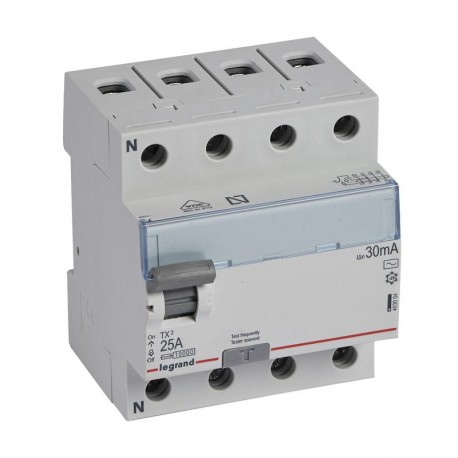

LEGRAND 403004 403004 LEGRAND DIFFERENTIAL TX3 4/25/30 AC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

403004 LEGRAND DIFFERENTIAL TX3 4/25/30 AC

403004

403004

LEGRAND

1 Pcs.

DIFFERENTIAL TX3 4/25/30 AC RCCB TX³ - 4P 400 V~ - 30 mA - 25 A - AC type - neutral on left-hand - no aux. Differential TX³ 4/25/30 alternating current

Automation > Residual current circuit breaker (RCCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 403004 differential tx3 safeguards electrical installations by detecting earth leakage currents and isolating the supply before hazards occur. It is commonly installed in modular distribution boards for comprehensive circuit protection. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 0.75 mm²
  • Frequency (EF005455): 50 Hz
  • Selective protection (EF002561): No
  • Short-circuit breaking capacity (Icw) (EF002562): 10 kA
  • Ambient temperature during operating (EF007515): -25 °C
  • Degree of protection (IP) (EF005474): IP20
  • Leakage current type (EF002560): AC
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): No
  • Mounting method (EF000003): DIN rail
  • Surge current capacity (EF002564): 0.25 kA
  • Number of poles (EF001391): 4
  • Short-time delayed tripping (EF003604): No
  • Rated fault current (EF002358): 0.03 A
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.701
  • Weight (g)338.00
Product characteristics
4-pole - 400 V~
  • Neutral on left-hand side
AC type
  • Sensitivity : 30 mA
  • In : 25 A
  • Number of modules : 4
General characteristics
RCCBs TX³ - residual current circuit breakers - from 25 A to 63 A - AC and A types
  • Conform to IEC 61008-1
  • Compatible with prong-type supply busbars
  • AC type : detect AC component faults
  • A type : detect AC and DC component faults
  • Do not accept auxiliaries
