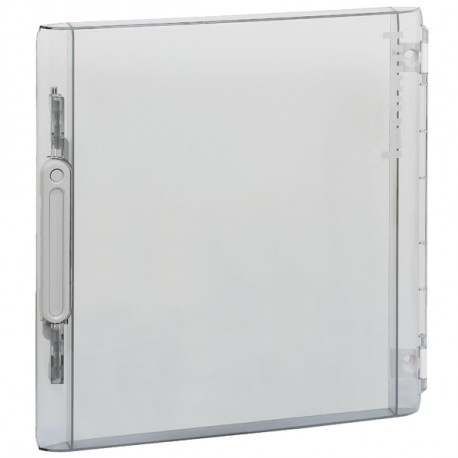

LEGRAND 401872 401872 LEGRAND TRANSPARENT DOOR 2X18 MOD. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

401872 LEGRAND TRANSPARENT DOOR 2X18 MOD.

401872

401872

LEGRAND

1 Pcs.

TRANSPARENT DOOR 2X18 MOD. Door - for XL² 125 distribution cabinet Cat.No 4 016 77 - Transparent XL³ 125 transparent door for XL³ 125 2-row box ref. 4 016 67

Automation > Door/operating panel (switchgear cabinet)
DIN MODULAR BOXES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 401872 LEGRAND TRANSPARENT DOOR 2X18 MOD. is a compartment door built to enclose modular distribution boards while allowing visual monitoring of internal equipment.

Accessory doors of this type are routinely installed on electrical distribution enclosures to shield operators from live components and protect internal devices from ambient dust and debris.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 446 mm
  • Model (EF000010): Compartment door
  • Degree of protection (IP) (EF005474): IP40
  • Version as glazed door (EF006966): Yes
  • Material (EF002169): Plastic
  • Depth (EF000049): 28 mm
  • Width (EF000008): 438 mm
  • Degree of protection (NEMA) (EF011959): 1
  • EMC-version (EF001062): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)7.724
  • Weight (g)1 180.00
Product characteristics
Doors - IP 40 - IK 09
  • For XL³ 125 distribution cabinets
  • Fully reversible
  • Can be equipped with lock and key n° 850 Cat.No 4 018 51
Transparent
  • For distribution cabinet Cat.No 4 016 77
General characteristics
Surface mounting cabinets XL³ 125 - from 18 to 72 modules
  • IP 40 - IK 09 with door
  • IP 30 - IK 08 without door
  • Class II
  • Self-extinguishing: resistance to incandescent wire 650 °C
  • Conform to IEC 60670-24
  • Allows to achieve assemblies conform to IEC 61439-3
