View larger
Images are for illustrative purposes only. Please refer to data sheet for details

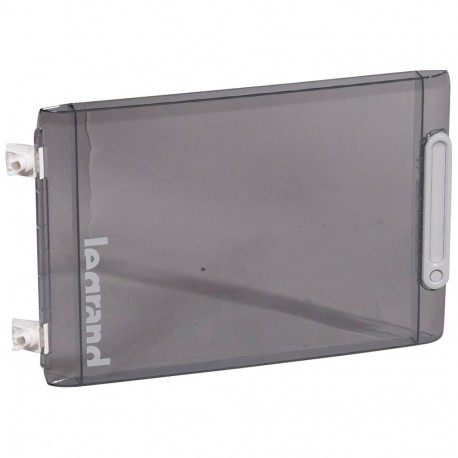

401871 LEGRAND TRANSPARENT DOOR 1X18 MOD.
401871
401871
LEGRAND
1 Pcs.
TRANSPARENT DOOR 1X18 MOD.
Door - for XL² 125 distribution cabinet Cat.No 4 016 76 - Transparent
XL³ 125 transparent door for XL³ 125 1-row box ref. 4 016 66
Automation > Door/operating panel (switchgear cabinet)
DIN MODULAR BOXES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)5.262
- Weight (g)772.00
Product characteristics
Doors - IP 40 - IK 09- For XL³ 125 distribution cabinets
- Fully reversible
- Can be equipped with lock and key n° 850 Cat.No 4 018 51
- For distribution cabinet Cat.No 4 016 76
General characteristics
Surface mounting cabinets XL³ 125 - from 18 to 72 modules- IP 40 - IK 09 with door
- IP 30 - IK 08 without door
- Class II
- Self-extinguishing: resistance to incandescent wire 650 °C
- Conform to IEC 60670-24
- Allows to achieve assemblies conform to IEC 61439-3
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 297 mm |
| Model (EF000010) | Compartment door |
| Degree of protection (IP) (EF005474) | IP40 |
| Version as glazed door (EF006966) | Yes |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Other |
| Depth (EF000049) | 28 mm |
| Colour (EF000007) | Other |
| Version as door for disconnecting switch interlocking (EF006967) | No |
| Width (EF000008) | 438 mm |
| Degree of protection (NEMA) (EF011959) | 1 |
| EMC-version (EF001062) | No |
