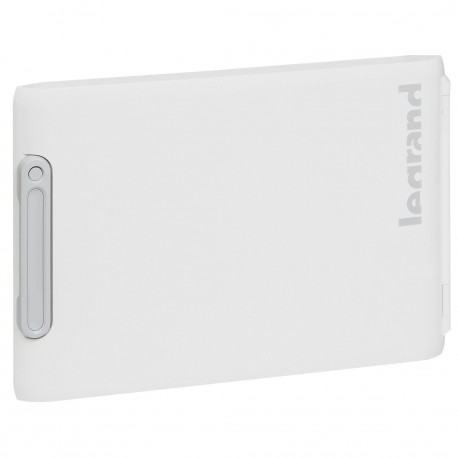

LEGRAND 401861 401861 LEGRAND DOOR OPAQUE 1X18 MOD. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

401861 LEGRAND DOOR OPAQUE 1X18 MOD.

401861

401861

LEGRAND

1 Pcs.

DOOR OPAQUE 1X18 MOD. Door - for XL² 125 distribution cabinet Cat.No 4 016 76 - White RAL 9003

Automation > Door/operating panel (switchgear cabinet)
DIN MODULAR BOXES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 401861 DOOR OPAQUE 1X18 MOD modules serve as modular compartment doors designed to cover distribution board cutouts while blocking visual access to internal circuit breakers. These plastic covers protect operators from exposed terminals in commercial and industrial electrical panels.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 297 mm
  • Model (EF000010): Compartment door
  • Degree of protection (IP) (EF005474): IP40
  • Version as glazed door (EF006966): No
  • Material (EF002169): Plastic
  • Depth (EF000049): 28 mm
  • Colour (EF000007): White
  • Width (EF000008): 438 mm
  • Degree of protection (NEMA) (EF011959): 1
  • EMC-version (EF001062): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)5.262
  • Weight (g)787.00
Product characteristics
Doors - IP 40 - IK 09
  • For XL³ 125 distribution cabinets
  • Fully reversible
  • Can be equipped with lock and key n° 850 Cat.No 4 018 51
White RAL 9003
  • For distribution cabinet Cat.No 4 016 76
General characteristics
Surface mounting cabinets XL³ 125 - from 18 to 72 modules
  • IP 40 - IK 09 with door
  • IP 30 - IK 08 without door
  • Class II
  • Self-extinguishing: resistance to incandescent wire 650 °C
  • Conform to IEC 60670-24
  • Allows to achieve assemblies conform to IEC 61439-3
