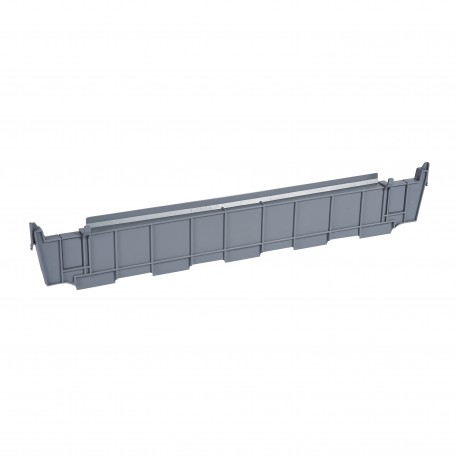

LEGRAND 401722 401722 LEGRAND SEPTUM HORIZONTAL SEPARATION View larger
Images are for illustrative purposes only. Please refer to data sheet for details

401722 LEGRAND SEPTUM HORIZONTAL SEPARATION

401722

401722

LEGRAND

1 Pcs.

SEPTUM HORIZONTAL SEPARATION Horizontal partition - for 2,3 or 4 rows Practibox³ cabinets Practibox³ horizontal partition wall for boxes with 2 or more rows

Automation > Divider panel (switchgear cabinet)
DIN MODULAR BOXES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand horizontal septum separation element, part number 401722, provides internal division within electrical enclosures to segregate wiring channels and modular equipment. Horizontal septa help maintain thermal management and physical isolation inside distribution boards.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 74 mm
  • Number of height units (EF003561): 1
  • Modular spacing (EF000394): 150 mm
  • For internal separation form 3b (EF009589): No
  • With lock (EF006306): No
  • Material (EF002169): Plastic
  • For internal separation form 3a (EF009588): No
  • For internal separation form 2b (EF009587): No
  • For internal separation form 2a (EF009586): No
  • For internal separation form 4b (EF009591): No
  • For internal separation form 4a (EF009590): No
  • Colour (EF000007): White
  • Suitable for enclosure building width (EF000326): 420 mm
  • RAL-number (EF000116): 9003
  • With cable entry (EF000325): Yes
  • Construction type (EF000767): Individual part

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.43
  • Weight (g)65.00
Product characteristics
Accessories
Horizontal partition for 18 modules per row cabinets
  • For 2, 3 or 4-rows cabinets
General characteristics
Flush-mounting cabinets Practibox³ - from 8 to 72 modules
  • Class II
  • IP 40 - IK 07 with door
  • Self-extinguishing: resistance to incandescent wire 850 °C
  • Conform to IEC 60670-24 and IEC 62208 : allows to achieve assemblies conform to IEC 61439-3
