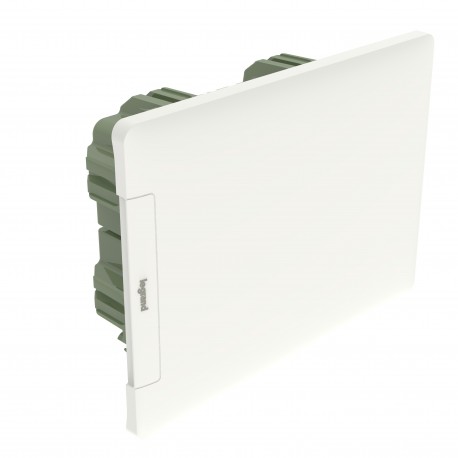

LEGRAND 401711 401711 LEGRAND BOX MD EMP PB 1X8 PRACTIBOX3 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

401711 LEGRAND BOX MD EMP PB 1X8 PRACTIBOX3

401711

401711

LEGRAND

1 Pcs.

BOX MD EMP PB 1X8 PRACTIBOX3 Practibox³ flush-mounting cabinet with earth terminal blocks - white door - 1 row - 8 modules per row Practibox³ 1 row insulating recessed box - 8mod - white door

Automation > Small distribution board
DIN MODULAR BOXES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Pack (number of units)1
  • Volume (dm3)7.216
  • Weight (g)814.00
Product characteristics
Flush-mounting distribution cabinets
  • Box for masonry or dry partitions (with dry partitions kit Cat.No 4 017 24)
  • Supplied with:
    • removable chassis with rails fitted
    • reversible door (door + faceplate for 1-row cabinets)
    • removable faceplates for each row (for 2, 3 and 4-row cabinets)
    • IP 2X screw terminal blocks
    • blanking plates (5 modules, separable per module or 1/2 module, for 2, 3 and 4-row cabinets)
  • Spacing between rails 150 mm
  • Door opening : 180°
  • Can be equipped with lock and key n° 850 Cat.No 0 019 66
8/12 modules per row with white door RAL 9003
  • With earth terminal blocks
  • Number of rows : 1
  • Number of modules : 8
  • Height : 186 mm
  • Width : 232 mm
  • Depth : 80 mm
General characteristics
Flush-mounting cabinets Practibox³ - from 8 to 72 modules
  • Class II
  • IP 40 - IK 07 with door
  • Self-extinguishing: resistance to incandescent wire 850 °C
  • Conform to IEC 60670-24 and IEC 62208 : allows to achieve assemblies conform to IEC 61439-3

ETIM for 401711 Distribution boards (EC000214)
Feature Name Feature Value
Height (EF000040) 208 mm
Type of door (EF004464) EV000426
Inner depth (EF001131) 76 mm
Transparent cover/door (EF006244) No
Type of closure (EF004462) Other
Degree of protection (IP) (EF005474) IP40
DIN-rail (EF001134) Yes
Housing material (EF001596) Plastic
With lock (EF006306) No
Mounting method (EF000003) Flush mounted
Number of rows (EF000266) 1
Cover model (EF009212) Closed
Signal passing door (EF015941) Yes
RAL-number (EF000116) 9003
Built-in depth (EF000218) 80 mm
Type of covering (EF000339) Door
With mounting plate (EF000118) No
Extension possible (EF001088) Yes
Width in number of modular spacings (EF002950) 8
Built-in height (EF000332) 204 mm
EMC-version (EF001062) No
Neutral terminal block (EF015777) No
Earthing terminal block (EF015776) Yes
Depth (EF000049) 100 mm
Colour (EF000007) White
Width (EF000008) 286 mm
Built-in width (EF000846) 282 mm
