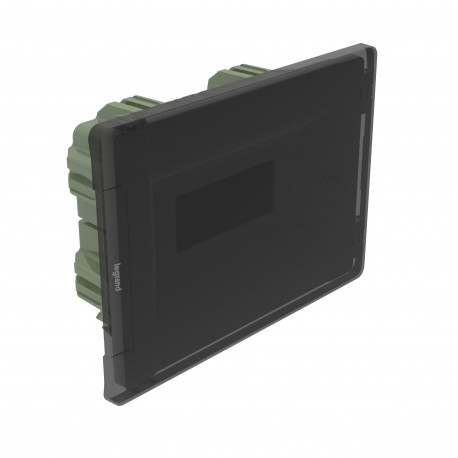

LEGRAND 401701 401701 LEGRAND BOX MD EMP PT 1X8 PRACTIBOX3 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

401701 LEGRAND BOX MD EMP PT 1X8 PRACTIBOX3

401701

401701

LEGRAND

1 Pcs.

BOX MD EMP PT 1X8 PRACTIBOX3 Practibox³ flush-mounting cabinet with earth terminal blocks - transparent door - 1 row - 8 modules per row Practibox³ 1 row - 8mod - transparent door recessed insulating box

Automation > Small distribution board
DIN MODULAR BOXES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Flush mounted enclosure marketed as the Legrand 401701 provides a clean wall-recessed housing solution for mounting miniature circuit breakers and related modular control components. Consumer units of this type protect internal wiring systems while maintaining seamless architectural integration.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 208 mm
  • Type of door (EF004464): EV000426
  • Inner depth (EF001131): 76 mm
  • Transparent cover/door (EF006244): Yes
  • Degree of protection (IP) (EF005474): IP40
  • DIN-rail (EF001134): Yes
  • Housing material (EF001596): Plastic
  • With lock (EF006306): No
  • Mounting method (EF000003): Flush mounted
  • Number of rows (EF000266): 1
  • Cover model (EF009212): Closed
  • Signal passing door (EF015941): Yes
  • RAL-number (EF000116): 9003
  • Built-in depth (EF000218): 80 mm
  • Type of covering (EF000339): Door
  • With mounting plate (EF000118): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)7.266
  • Weight (g)787.00
Product characteristics
Flush-mounting distribution cabinets
  • Box for masonry or dry partitions (with dry partitions kit Cat.No 4 017 24)
  • Supplied with:
    • removable chassis with rails fitted
    • reversible door (door + faceplate for 1-row cabinets)
    • removable faceplates for each row (for 2, 3 and 4-row cabinets)
    • IP 2X screw terminal blocks
    • blanking plates (5 modules, separable per module or 1/2 module, for 2, 3 and 4-row cabinets)
  • Spacing between rails 150 mm
  • Door opening : 180°
  • Can be equipped with lock and key n° 850 Cat.No 0 019 66
8/12 modules per row with transparent door
  • With earth terminal blocks
  • Number of rows : 1
  • Number of modules : 8
  • Height : 186 mm
  • Width : 232 mm
  • Depth : 80 mm
General characteristics
Flush-mounting cabinets Practibox³ - from 8 to 72 modules
  • Class II
  • IP 40 - IK 07 with door
  • Self-extinguishing: resistance to incandescent wire 850 °C
  • Conform to IEC 60670-24 and IEC 62208 : allows to achieve assemblies conform to IEC 61439-3
