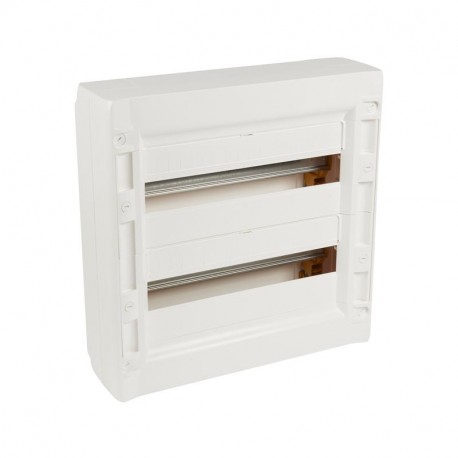

LEGRAND 401667 401667 LEGRAND SURFACE BOX 2X18 MOD. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

401667 LEGRAND SURFACE BOX 2X18 MOD.

401667

401667

LEGRAND

1 Pcs.

SURFACE BOX 2X18 MOD. Modular box surface XL3125 - 2 rows of 18 modules XL³ 125 Surface Modular Box - 2 rows of 18mod

Automation > Small distribution board
DIN MODULAR BOXES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 401667 LEGRAND SURFACE BOX 2X18 MOD. by Legrand functions as a wall-mounted surface enclosure engineered to hold modular circuit protection and control apparatus. Surface distribution boxes provide secure, easily accessible housing for electrical switching systems in commercial and industrial spaces.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 450 mm
  • Type of door (EF004464): EV000426
  • Inner depth (EF001131): 128 mm
  • Transparent cover/door (EF006244): No
  • Type of closure (EF004462): Cylinder
  • Degree of protection (IP) (EF005474): IP40
  • DIN-rail (EF001134): Yes
  • Housing material (EF001596): Plastic
  • With lock (EF006306): Yes
  • Mounting method (EF000003): Surface mounted
  • Number of rows (EF000266): 2
  • Cover model (EF009212): With notch
  • Signal passing door (EF015941): Yes
  • RAL-number (EF000116): 9003
  • Built-in depth (EF000218): 124 mm
  • Type of covering (EF000339): Optional

More info

▲

Product features

Modular boxes 18 modules - Capacity 18 modules per row White RAL 9003 - Boxes fully reversible (chassis, box, door) - Supplied with: - chassis-removable and pivoting equipped with profiles DIN 2-position (for mechanisms, modular or DPX3160). The profiles can be dismantled individually without tools. - cable entries (top and bottom) removable without tools - plate-closing, 1/4 turn, removable, individually - adhesive labels to identify circuits - terminals earth - Distance between profiles: 150 mm - Can be equipped with mounting plates and perforated plates cubrebornas blind for the mounting of products is not modular (from 2 rows) - Supplied without door Number of rows: 2 Number of modules: 36 Height: 450 mm

General characteristics

XL3125 - boxes, modular surface 18 to 70 - modules IP 40 - IK 09 with door IP 40 - IK 08 no door - Class II - Self-extinguishing: resistance to the incandescent thread 750ºC - Conform to IEC 60439-3 and IEC 60670-24
