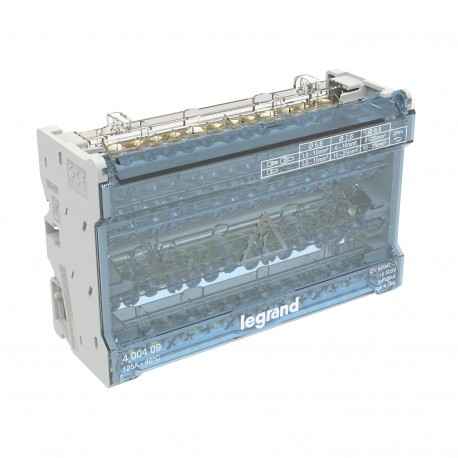

400409 LEGRAND REP MOD 4P 125A 8MOD
400409
400409
LEGRAND
6 Pcs.
Automation > Rail terminal bar
SPLITTERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand modular distribution block routes multi-phase power feeds into multiple protected branch circuits within industrial distribution boards. These units ensure secure electrical performance and clean cable arrangement in high-density control panels.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 92 mm
- Nominal current (EF000001): 125 A
- Connection type (EF000124): Screwing
- Mounting method (EF000003): DIN rail
- Number of poles (EF001391): 4
- Depth (EF000049): 51 mm
- Width (EF000008): 143 mm
More info
▲| Number of poles | 4 |
|---|---|
| Nominal current | 125 A |
| Connection type | Screwing |
| Mounting method | DIN rail |
| Height | 92 mm |
| Width | 143 mm |
| Depth | 51 mm |
| degree of impact strength (IK) | IK05 |
| Degree of protection (IP) | IP00 |
|---|---|
| Operating / setting temperature | -25-70 °C |
| Storage temperature | -40-70 °C |
| Nominal voltage | 0-500 V |
| Halogen free | No |
| Type of distribution blocks | Phase/neutral |
| Terminals capacity | 1.5-25 mm² |
| Label space/information surface | No |
