View larger
Images are for illustrative purposes only. Please refer to data sheet for details

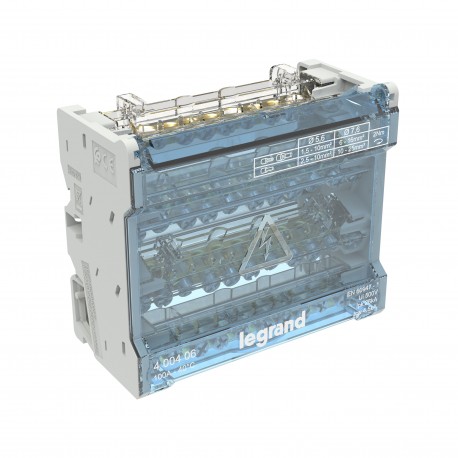

400406 LEGRAND REP MOD 4P 100A 6MOD
400406
400406
LEGRAND
6 Pcs.
REP MOD 4P 100A 6MOD
Legrand 4 Pole 100A Distribution Block 6 Module
Modular step bar distributor - 4 Poles - 100A - 10 outputs - 6mod
Automation > Rail terminal bar
SPLITTERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Number of poles | 4 |
|---|---|
| Nominal current | 100 A |
| Connection type | Screwing |
| Mounting method | DIN rail |
| Height | 92 mm |
| Width | 106 mm |
| Depth | 51 mm |
| degree of impact strength (IK) | IK05 |
| Degree of protection (IP) | IP00 |
|---|---|
| Operating / setting temperature | -25-70 °C |
| Storage temperature | -40-70 °C |
| Nominal voltage | 0-500 V |
| Halogen free | No |
| Type of distribution blocks | Phase/neutral |
| Terminals capacity | 1.5-16 mm² |
| Label space/information surface | No |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 92 mm |
| Nominal current (EF000001) | 100 A |
| Connection type (EF000124) | Screwing |
| Mounting method (EF000003) | DIN rail |
| Number of poles (EF001391) | 4 |
| Depth (EF000049) | 51 mm |
| Width (EF000008) | 106 mm |
