View larger
Images are for illustrative purposes only. Please refer to data sheet for details

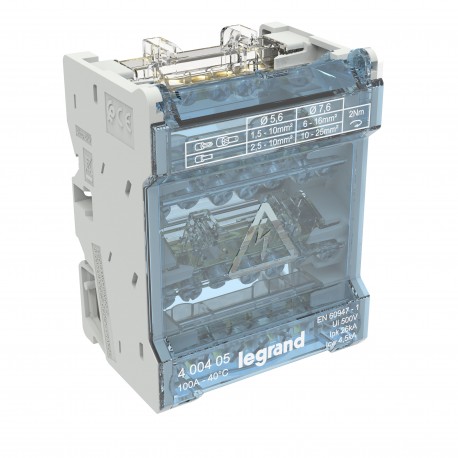

400405 LEGRAND REP MOD 4P 100A 4MOD
400405
400405
LEGRAND
12 Pcs.
REP MOD 4P 100A 4MOD
Legrand 4 Pole 100A Distribution Block 4 Module
Modular stepped bar distributor - 4 Poles - 100A - 6 outputs - 4mod
Automation > Rail terminal bar
SPLITTERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Number of poles | 4 |
|---|---|
| Nominal current | 100 A |
| Connection type | Screwing |
| Mounting method | DIN rail |
| Height | 92 mm |
| Width | 71 mm |
| Depth | 51 mm |
| degree of impact strength (IK) | IK05 |
| Degree of protection (IP) | IP00 |
|---|---|
| Operating / setting temperature | -25-70 °C |
| Storage temperature | -40-70 °C |
| Nominal voltage | 0-500 V |
| Halogen free | No |
| Type of distribution blocks | Phase/neutral |
| Terminals capacity | 1.5-16 mm² |
| Label space/information surface | No |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 92 mm |
| Nominal current (EF000001) | 100 A |
| Connection type (EF000124) | Screwing |
| Mounting method (EF000003) | DIN rail |
| Number of poles (EF001391) | 4 |
| Depth (EF000049) | 51 mm |
| Width (EF000008) | 71 mm |
