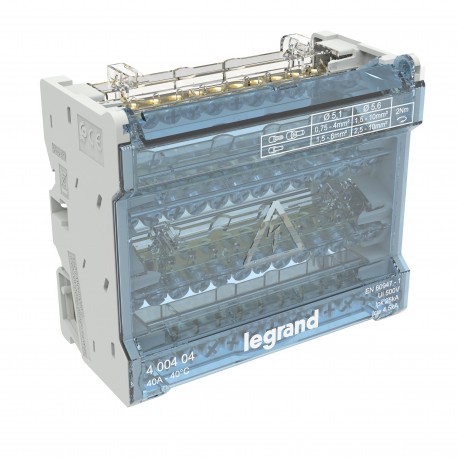

400404 LEGRAND REP MOD 4P 40A 6MOD
400404
400404
LEGRAND
6 Pcs.
REP MOD 4P 40A 6MOD
Legrand 4 Pole 40A Distribution Block 6 Module
Modular stepped bar distributor - 4 Poles - 40A - 12 outputs - 6mod
Automation > Rail terminal bar
SPLITTERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand distribution module provides multi-pole power splitting for 4-pole electrical installations, streamlining cable connections on standard DIN rail profiles.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height: 92 mm
- Nominal current: 40 A
- Connection type: Screwing
- Mounting method: DIN rail
- Number of poles: 4
- Depth: 51 mm
- Width: 106 mm
More info
▲| Number of poles | 4 |
|---|---|
| Nominal current | 40 A |
| Connection type | Screwing |
| Mounting method | DIN rail |
| Height | 92 mm |
| Width | 106 mm |
| Depth | 51 mm |
| degree of impact strength (IK) | IK05 |
| Degree of protection (IP) | IP00 |
|---|---|
| Operating / setting temperature | -25-70 °C |
| Storage temperature | -40-70 °C |
| Nominal voltage | 0-500 V |
| Halogen free | No |
| Type of distribution blocks | Phase/neutral |
| Terminals capacity | 0.75-10 mm² |
| Label space/information surface | No |
