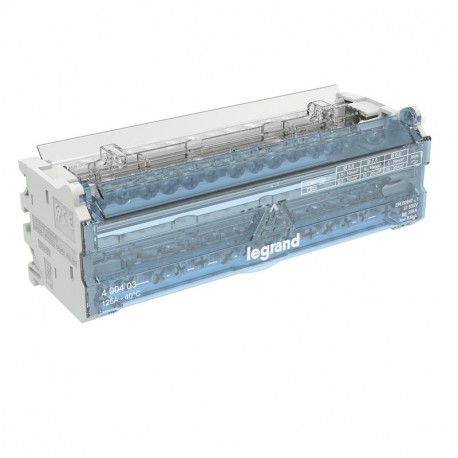

400403 LEGRAND REP MOD 2P 125A 8MOD
400403
400403
LEGRAND
5 Pcs.
REP MOD 2P 125A 8MOD
Legrand 2 Pole 125A Distribution Block 8 Module
Modular stepped bar distributor - 2 Poles - 125A - 14 outputs - 8mod
Automation > Rail terminal bar
SPLITTERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand distribution block organizes and distributes power lines across 2-pole modular systems, facilitating clean cable routing and reliable electrical distribution in control panels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height: 52 mm
- Nominal current: 125 A
- Connection type: Screwing
- Mounting method: DIN rail
- Number of poles: 2
- Depth: 51 mm
- Width: 143 mm
More info
▲| Number of poles | 2 |
|---|---|
| Nominal current | 125 A |
| Connection type | Screwing |
| Mounting method | DIN rail |
| Height | 52 mm |
| Width | 143 mm |
| Depth | 51 mm |
| degree of impact strength (IK) | IK05 |
| Degree of protection (IP) | IP00 |
|---|---|
| Operating / setting temperature | -25-70 °C |
| Storage temperature | -40-70 °C |
| Nominal voltage | 0-500 V |
| Halogen free | No |
| Type of distribution blocks | Phase/neutral |
| Terminals capacity | 1.5-25 mm² |
| Label space/information surface | No |
