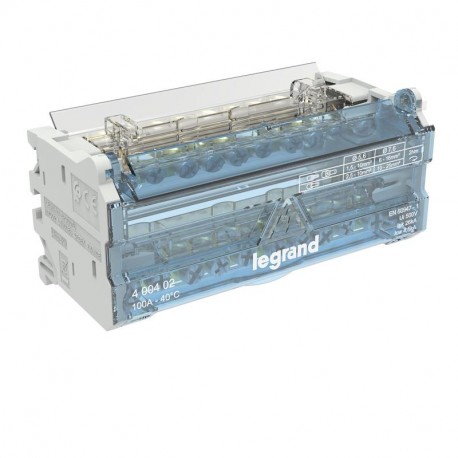

400402 LEGRAND REP MOD 2P 100A 6MOD
400402
400402
LEGRAND
5 Pcs.
Automation > Rail terminal bar
SPLITTERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand modular distribution block simplifies dual-phase power management by routing main incoming electrical feeds into organized sub-circuits. These compact units mount securely onto standard rails within commercial and industrial electrical distribution assemblies.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 52 mm
- Nominal current (EF000001): 100 A
- Connection type (EF000124): Screwing
- Mounting method (EF000003): DIN rail
- Number of poles (EF001391): 2
- Depth (EF000049): 51 mm
- Width (EF000008): 106 mm
More info
▲| Number of poles | 2 |
|---|---|
| Nominal current | 100 A |
| Connection type | Screwing |
| Mounting method | DIN rail |
| Height | 52 mm |
| Width | 106 mm |
| Depth | 51 mm |
| degree of impact strength (IK) | IK05 |
| Degree of protection (IP) | IP00 |
|---|---|
| Operating / setting temperature | -25-70 °C |
| Storage temperature | -40-70 °C |
| Nominal voltage | 0-500 V |
| Halogen free | No |
| Type of distribution blocks | Phase/neutral |
| Terminals capacity | 1.5-16 mm² |
| Label space/information surface | No |
