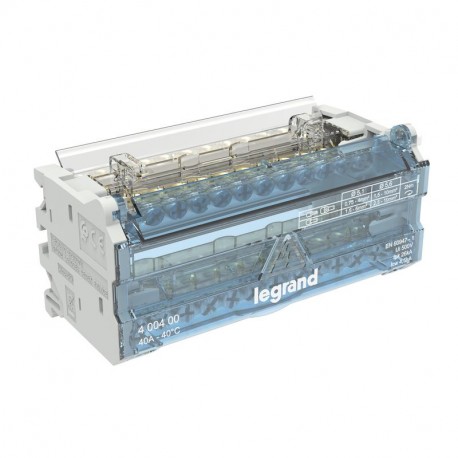

LEGRAND 400400 400400 LEGRAND REP MOD 2P 40A 6MOD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

400400 LEGRAND REP MOD 2P 40A 6MOD

400400

400400

LEGRAND

5 Pcs.

REP MOD 2P 40A 6MOD Legrand 2 Pole 40A Distribution Block 6 Module Modular stepped bar distributor - 2 Poles - 40A - 12 outputs - 6mod

Automation > Rail terminal bar
SPLITTERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 400400 modular distribution block offers a compact way to organize electrical feeds into dual-pole circuits inside standard control enclosures. Devices of this category facilitate clean, space-saving layouts on DIN rail mounts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 52 mm
  • Nominal current (EF000001): 40 A
  • Connection type (EF000124): Screwing
  • Mounting method (EF000003): DIN rail
  • Number of poles (EF001391): 2
  • Depth (EF000049): 51 mm
  • Width (EF000008): 106 mm

More info

▲
Number of poles2
Nominal current40 A
Connection typeScrewing
Mounting methodDIN rail
Height52 mm
Width106 mm
Depth51 mm
degree of impact strength (IK)IK05
Degree of protection (IP)IP00
Operating / setting temperature-25-70 °C
Storage temperature-40-70 °C
Nominal voltage0-500 V
Halogen freeNo
Type of distribution blocksPhase/neutral
Terminals capacity0.75-10 mm²
Label space/information surfaceNo
