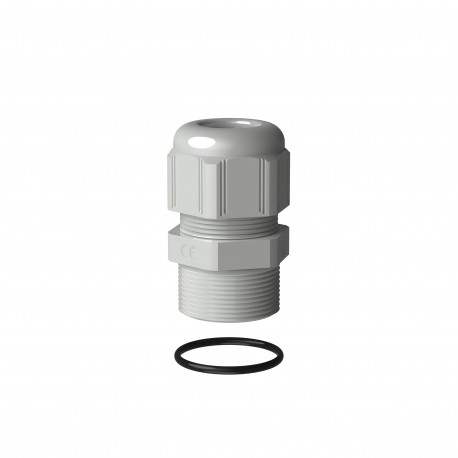

LEGRAND 381591 381591 LEGRAND PRESSES RAL 7035 IP68 PG36 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

381591 LEGRAND PRESSES RAL 7035 IP68 PG36

381591

381591

LEGRAND

10 Pcs.

PRESSES RAL 7035 IP68 - PG36 Plastic cable glands - IP68 - PG 36 - RAL 7035

Cables > Cable gland
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand cable gland (381591) provides a dependable entry point for electrical conductors entering control cabinets, protecting internal components against liquid and particle contamination.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Flat cable coupling (EF004685): No
  • Shock resistant (EF000084): Yes
  • Degree of protection (IP) (EF005474): IP68
  • Material (EF002169): Plastic
  • Screened (EF000881): No
  • Separable screw gland (EF005337): No
  • Glass-fibre reinforced (EF001210): No
  • Halogen free (EF000025): Yes
  • Material quality (EF001257): Polyamide (PA)
  • Snapping in opening (EF012547): Yes
  • Operating temperature (EF001742): -20 °C
  • Surface protection (EF000139): Untreated
  • RAL-number (EF000116): 7035
  • With strain relief (EF000878): No
  • Bend radius protection/trumpet flare (EF000734): No
  • Multi seal area (EF005004): No

More info

▲

Product features

Grey glands RAL 7035 - Flexible sheet glands for tertiary applications requiring good cable fastening with a requirement of IP 68 Thread PG - Meet the recommendations of UTE guides C 68-300 and 68-311 - PG: 36 - Tightening capacity Ø min.: 22 mm - Tightening capacity Ø max.: 32 mm

General features

IP 68 plastic cable glands
