View larger
Images are for illustrative purposes only. Please refer to data sheet for details

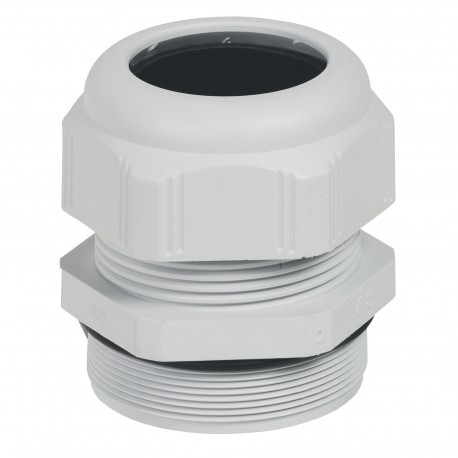

381583 LEGRAND PRESSES RAL 7035 IP68 ISO63
381583
381583
LEGRAND
5 Pcs.
PRESSES RAL 7035 IP68 - ISO63
Plastic glands - IP68 - ISO 63 - RAL 7035
Cables > Cable gland
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Grey glands RAL 7035 - Flexible sheet glands for tertiary applications requiring good cable fastening with a requirement of IP 68 ISO thread - Comply with EN 50262 - ISO: 63 - Tightening capacity Ø min.: 34 mm - Tightening capacity Ø max.: 44 mmGeneral features
IP 68 plastic cable glands| Feature Name | Feature Value |
|---|---|
| Flat cable coupling (EF004685) | No |
| For Ex-zone dust (EF008404) | None |
| Shock resistant (EF000084) | Yes |
| Degree of protection (IP) (EF005474) | IP68 |
| Material (EF002169) | Plastic |
| Screened (EF000881) | No |
| Separable screw gland (EF005337) | No |
| Glass-fibre reinforced (EF001210) | No |
| Halogen free (EF000025) | Yes |
| Material quality (EF001257) | Polyamide (PA) |
| Snapping in opening (EF012547) | Yes |
| Operating temperature (EF001742) | -20 °C |
| Surface protection (EF000139) | Untreated |
| RAL-number (EF000116) | 7035 |
| With strain relief (EF000878) | No |
| Bend radius protection/trumpet flare (EF000734) | No |
| For Ex-zone gas (EF005728) | None |
| Multi seal area (EF005004) | No |
| Hexagon angular dimension (EF005268) | 68 mm |
| Suitable for cable diameter (EF005466) | 34 mm |
| Model (EF000010) | Straight |
| Wrench width (EF000177) | 68 mm |
| With locknut (EF005049) | No |
| Explosion-tested version (EF004191) | No |
| EMC-version (EF001062) | No |
| For armoured cable (EF012184) | No |
| Thread length (EF000368) | 18 mm |
| Type of sealing (EF001217) | EV009696 |
| Colour (EF000007) | Grey |
| Pitch thread (EF003712) | 1.5 mm |
| Thread type (EF001758) | Metric |
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Nominal thread size metric/PG (EF007839) | 63 |
