View larger
Images are for illustrative purposes only. Please refer to data sheet for details

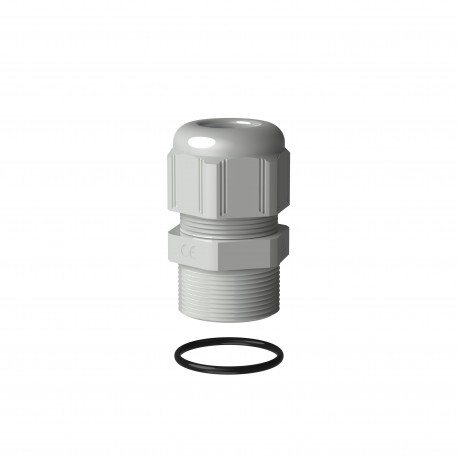

381578 LEGRAND RAL 7035 IP68 PRESSES ISO20
381578
381578
LEGRAND
50 Pcs.
RAL 7035 IP68 PRESSES - ISO20
Plastic glands - IP68 - ISO 20 - RAL 7035
Cables > Cable gland
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Grey glands RAL 7035 - Flexible sheet glands for tertiary applications requiring good cable fastening with a requirement of IP 68 ISO thread - Comply with EN 50262 - ISO: 20 - Tightening capacity Ø min.: 10 mm - Tightening capacity Ø max.: 14 mmGeneral features
IP 68 plastic cable glands| Feature Name | Feature Value |
|---|---|
| Flat cable coupling (EF004685) | No |
| For Ex-zone dust (EF008404) | None |
| Shock resistant (EF000084) | Yes |
| Degree of protection (IP) (EF005474) | IP68 |
| Material (EF002169) | Plastic |
| Screened (EF000881) | No |
| Separable screw gland (EF005337) | No |
| Glass-fibre reinforced (EF001210) | No |
| Halogen free (EF000025) | Yes |
| Material quality (EF001257) | Polyamide (PA) |
| Snapping in opening (EF012547) | Yes |
| Operating temperature (EF001742) | -20 °C |
| Surface protection (EF000139) | Untreated |
| RAL-number (EF000116) | 7035 |
| With strain relief (EF000878) | No |
| Bend radius protection/trumpet flare (EF000734) | No |
| For Ex-zone gas (EF005728) | None |
| Multi seal area (EF005004) | No |
| Hexagon angular dimension (EF005268) | 24 mm |
| Suitable for cable diameter (EF005466) | 6 mm |
| Model (EF000010) | Straight |
| Wrench width (EF000177) | 24 mm |
| With locknut (EF005049) | No |
| Explosion-tested version (EF004191) | No |
| EMC-version (EF001062) | No |
| For armoured cable (EF012184) | No |
| Thread length (EF000368) | 12 mm |
| Type of sealing (EF001217) | EV009696 |
| Colour (EF000007) | Grey |
| Pitch thread (EF003712) | 1.5 mm |
| Thread type (EF001758) | Metric |
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Nominal thread size metric/PG (EF007839) | 20 |
