337217 LEGRAND XL3S 160 SUPERF METAL 7X36M
337217
337217
LEGRAND
1 Pcs.
XL3S 160 SUPERF METAL 7X36M

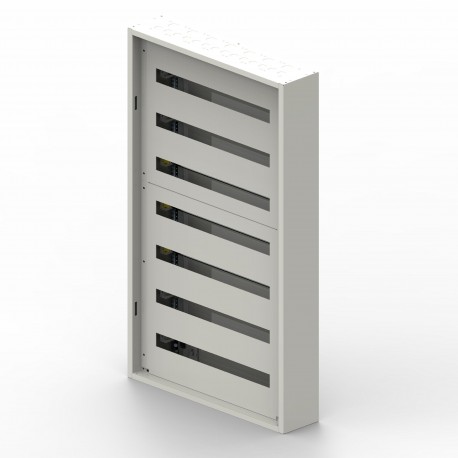

XL³ S 160 surface-mounting 36-modules per row cabinet - RAL 9003 - 7 rows - 252 modules - 1190x810x135 mm
XL³ S 160 metal distribution box - fully modular - 7 rows of 36mod
Automation > Small distribution board
XL3 S 160 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Surface-mounted metal enclosure, Legrand part number 337217, functions as a high-capacity distribution board designed to organize and protect electrical equipment in commercial buildings.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 1340 mm
- Inner depth (EF001131): 103 mm
- Transparent cover/door (EF006244): Yes
- Degree of protection (IP) (EF005474): IP30
- DIN-rail (EF001134): Yes
- Housing material (EF001596): Steel
- With lock (EF006306): Yes
- Mounting method (EF000003): Surface mounted
- Number of rows (EF000266): 7
- Cover model (EF009212): With notch
- RAL-number (EF000116): 9003
- Built-in depth (EF000218): 103 mm
- Type of covering (EF000339): Optional
- With mounting plate (EF000118): Yes
- Extension possible (EF001088): Yes
- EMC-version (EF001062): No
More info
▲- Pack (number of units)1
- Volume (dm3)173.571
- Weight (g)23 500.00
Product characteristics
Surface mounting 36-module per row cabinets- Faceplates and body: RAL 9003
- Number of rows : 7
- Number of modules : 252
- Height : 1190 mm
- Width : 810 mm
- Depth : 135 mm
General characteristics
XL³ S 160 - 36 modules per row - "ready to use" metal distribution cabinets- Cabinets supplied with rails fitted (150 mm fixing centres) and full height faceplates
- Doors and terminal blocks to be ordered separately
- Take DPX³ 160 and modular protection devices
- Used to create assemblies certified IEC 61439-2 and -3
- IP 40 with door
- IP 30 without door
- Cut-outs in top and bottom for feeding cables through
- Can take Lina 25 ducting
