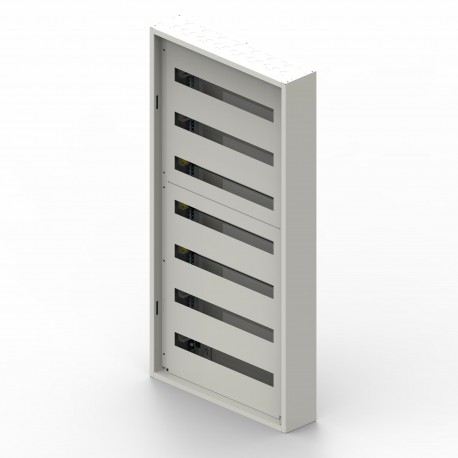

337207 LEGRAND XL3S 160 SUPERF METAL 7X24M
337207
337207
LEGRAND
1 Pcs.
Automation > Small distribution board
XL3 S 160 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 337207 XL3S 160 is a surface-mounted metal distribution enclosure built for reliable housing of electrical switchgear and modular protection components. Metal enclosures offer robust mechanical protection and grounding continuity for commercial power distribution setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 890 mm
- Inner depth (EF001131): 103 mm
- Transparent cover/door (EF006244): Yes
- Degree of protection (IP) (EF005474): IP30
- DIN-rail (EF001134): Yes
- Housing material (EF001596): Steel
- With lock (EF006306): Yes
- Mounting method (EF000003): Surface mounted
- Number of rows (EF000266): 7
- Cover model (EF009212): With notch
- RAL-number (EF000116): 9003
- Built-in depth (EF000218): 103 mm
- Type of covering (EF000339): Optional
- With mounting plate (EF000118): Yes
- Extension possible (EF001088): Yes
- EMC-version (EF001062): No
More info
▲- Pack (number of units)1
- Volume (dm3)123.984
- Weight (g)23 030.00
- Faceplates and body: RAL 9003
- Number of rows : 7
- Number of modules : 168
- Height : 1190 mm
- Width : 595 mm
- Depth : 135 mm
- Cabinets supplied with rails fitted (150 mm fixing centres) and full height faceplates
- Doors and terminal blocks to be ordered separately
- Take DPX³ 160 and modular protection devices
- Used to create assemblies certified IEC 61439-2 and -3
- IP 40 with door
- IP 30 without door
- Cut-outs in top and bottom for feeding cables through
- Can take Lina 25 ducting
