View larger
Images are for illustrative purposes only. Please refer to data sheet for details

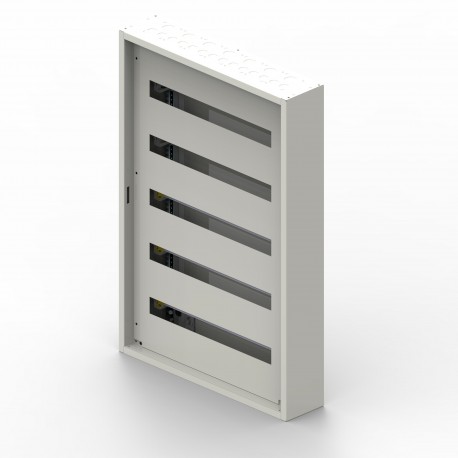

337205 LEGRAND XL3S 160 SUPERF METAL 5X24M
337205
337205
LEGRAND
1 Pcs.
XL3S 160 SUPERF METAL 5X24M
XL³ S 160 surface-mounting 24-modules per row cabinet - RAL 9003 - 5 rows - 120 modules - 890x595x135 mm
XL³ S 160 metal distribution box - fully modular - 5 rows of 24mod
Automation > Small distribution board
XL3 S 160 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)97.845
- Weight (g)17 386.00
Product characteristics
Surface mounting 24-module per row cabinets- Faceplates and body: RAL 9003
- Number of rows : 5
- Number of modules : 120
- Height : 890 mm
- Width : 595 mm
- Depth : 135 mm
General characteristics
XL³ S 160 - 24 modules per row - "ready to use" metal distribution cabinets- Cabinets supplied with rails fitted (150 mm fixing centres) and full height faceplates
- Doors and terminal blocks to be ordered separately
- Take DPX³ 160 and modular protection devices
- Used to create assemblies certified IEC 61439-2 and -3
- IP 40 with door
- IP 30 without door
- Cut-outs in top and bottom for feeding cables through
- Can take Lina 25 ducting
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 811 mm |
| Inner depth (EF001131) | 103 mm |
| Transparent cover/door (EF006244) | Yes |
| Degree of protection (IP) (EF005474) | IP30 |
| DIN-rail (EF001134) | Yes |
| Housing material (EF001596) | Steel |
| With lock (EF006306) | Yes |
| Mounting method (EF000003) | Surface mounted |
| Number of rows (EF000266) | 5 |
| Cover model (EF009212) | With notch |
| RAL-number (EF000116) | 9003 |
| Built-in depth (EF000218) | 103 mm |
| Type of covering (EF000339) | Optional |
| With mounting plate (EF000118) | Yes |
| Extension possible (EF001088) | Yes |
| EMC-version (EF001062) | No |
| Depth (EF000049) | 135 mm |
| Colour (EF000007) | White |
| Width (EF000008) | 740 mm |
