311072 LEGRAND SAI KEOR SPE RACK 2U 3KVA
311072
311072
LEGRAND
1 Pcs.
Automation > UPS
SINGLE PHASE UPS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

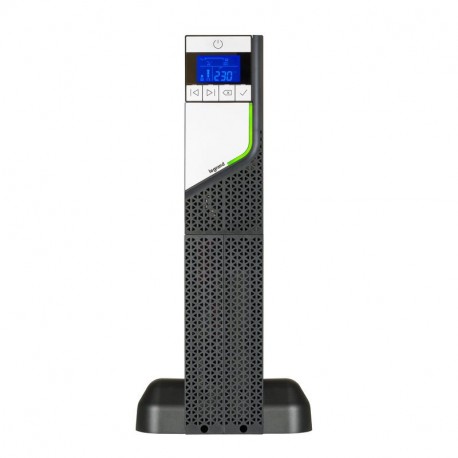

This 311072 LEGRAND SAI KEOR SPE RACK 2U 3KVA is an uninterruptible power supply engineered to provide stable backup energy for critical IT and industrial rack installations. Rack-mounted power protection systems ensure uninterrupted uptime during grid failures.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 88 mm
- Output effective power (EF009897): 2700 W
- With communication interface RS-232 (EF007312): No
- Voltage type (EF000187): AC
- Weight (EF000167): 29.5 kg
- Output apparent power (EF009898): 3000 VA
- Auto shut down function (EF009276): Yes
- Number of output connections fixed connection (EF009730): 0
- Secondary frequency (EF009273): 50 Hz
- Primary frequency (EF009272): 47 Hz
- Number of phases primary (EF009275): 1
- Potential free switch contact (EF003626): Yes
- USB interface (EF002039): Yes
- Number of output connections C19 (EF009728): 1
- Overall efficiency (EF009406): 85 %
- Output power factor (EF009405): 0.9
More info
▲Overview
SAI KEOR SPE 2U 3kVA. 19" interactive rack UPS designed for computers, servers, and voice/data networks. Uninterruptible power supply with interactive in-line technology and sinusoidal output. Power: 0.7.
description
The KEOR SPE R/T 2U 3000 UPS is an uninterruptible power supply with interactive line technology and sinusoidal output. It supplies a nominal power of 3000VA - 2700W, it is managed by a microprocessor. Equipped with integrated self-diagnosis and works with cold start. It is a convertible UPS that can be used in both tower and rack configurations. KEOR SPE R/T 3000 is internally equipped with valve-regulator, hermetically sealed lead-acid batteries to ensure a minimum uptime of 8 minutes at 80% charge. The presence of an electronic stabilizer (AVR) inside the UPS provides the connected loads with effective protection against interference in the power grid. This UPS has 2 output sockets (4 x IEC 320-C13) + (1 x IEC 320-C19) and 1 group can be programmable. KEOR SPE R/T 3000 can be connected to a PC via SNMP, USB port and Serial RS232 allowing you to monitor its operation, thanks to the free software, and perform an emergency shutdown of Windows and Linux operating systems.specifications
| Input voltage | 175 - 288 V |
|---|---|
| Primary frequency | 47-63 Hz |
| Number of primary phases | 1 |
| Output voltage | 208-240 V |
| Secondary frequency | 50-60 Hz |
| Active power output | 2700 W |
| Apparent power output | 3000 VA |
| USB interface | Yes |
| With RD 232 communication interface | No |
| SNMP | Yes |
| Type of voltage | AC |
| Height | 88 mm |
| Width | 440 mm |
| Depth | 600 mm |
| Weight | 29.5 kg |
| Transition time at full load | 0.00016 min |
| Network management capability | Yes |
| ISV Technology | Interactive Line |
| Construction Method | 482.6 mm (19 inch) device |
| Max. voltage distortion at output (linear load) | 3 % |
| Power Factor at Output | 0.9 |
|---|---|
| Total efficiency | 85 % |
| Efficiency in Eco mode | 98 % |
| Potential-free switching contact | Yes |
| Automatic switch-off function | Yes |
| Input socket | C20 |
| Number of C13 outlet outlets | 8 |
| Number of C19 outlet sockets | 1 |
| Number of output connections with CEE 7/3 protective contact (type F) | 0 |
| Number of fixed-type output sockets | 0 |
| Protection Class (IP) | IP20 |
| Operating Temperature | 0-40 °C |
| Storage temperature | 0-50 °C |
| Nominal current | 10-17 A |
| Sound Level | 55 dB |
| Display of markings on the connection terminals | Yes |
| Load Type | Not applicable |
| With electrical outlet | Yes |
| Contains battery and/or accumulator | Yes |
