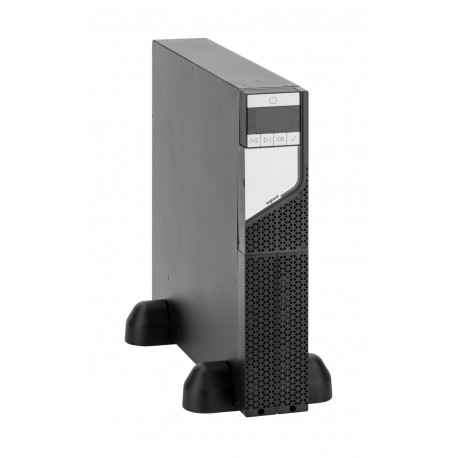

311067 LEGRAND SAI KEOR SPE RACK 2U 1KVA
311067
311067
LEGRAND
1 Pcs.
SAI KEOR SPE RACK 2U 1KVA
Legrand KEOR SPE 2U 1kVA rack UPS
Automation > UPS
SINGLE PHASE UPS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Overview
SAI KEOR SPE 2U 1kVA. 19" interactive rack UPS designed for computers, servers, and voice/data networks. Uninterruptible power supply with interactive in-line technology and sinusoidal output. Power: 0.7.
description
The KEOR SPE R/T 2U 1000 UPS is an uninterruptible power supply with interactive line technology and sinusoidal output. It supplies a rated power of 1000VA - 800W, it is managed by a microprocessor. Equipped with integrated self-diagnosis and works with cold start. It is a convertible UPS that can be used in both tower and rack configurations. KEOR SPE R/T 1000 is internally equipped with valve-regulator, hermetically sealed lead-acid batteries to ensure a minimum uptime of 8 minutes at 80% charge. The presence of an electronic stabilizer (AVR) inside the UPS provides the connected loads with effective protection against interference in the power grid. This UPS has 2 output sockets (4 x IEC 320-C13) and 1 group can be programmable. KEOR SPE R/T 1000 can be connected to a PC via SNMP, USB port and Serial RS232 allowing you to monitor its operation, thanks to the free software, and perform an emergency shutdown of Windows and Linux operating systems.specifications
| Input voltage | 175 - 288 V |
|---|---|
| Primary frequency | 47-63 Hz |
| Number of primary phases | 1 |
| Output voltage | 208-240 V |
| Secondary frequency | 50-60 Hz |
| Active power output | 800 W |
| Apparent power output | 1000 VA |
| USB interface | Yes |
| With RD 232 communication interface | No |
| SNMP | Yes |
| Type of voltage | AC |
| Height | 88 mm |
| Width | 440 mm |
| Depth | 440 mm |
| Weight | 16.8 kg |
| Transition time at full load | 0.00016 min |
| Network management capability | Yes |
| ISV Technology | Interactive Line |
| Construction Method | 482.6 mm (19 inch) device |
| Max. voltage distortion at output (linear load) | 3 % |
| Power Factor at Output | 0.8 |
|---|---|
| Total efficiency | 82 % |
| Efficiency in Eco mode | 98 % |
| Potential-free switching contact | Yes |
| Automatic switch-off function | Yes |
| Input socket | C14 |
| Number of C13 outlet outlets | 8 |
| Number of C19 outlet sockets | 0 |
| Number of output connections with CEE 7/3 protective contact (type F) | 0 |
| Number of fixed-type output sockets | 0 |
| Protection Class (IP) | IP20 |
| Operating Temperature | 0-40 °C |
| Storage temperature | 0-50 °C |
| Nominal current | 3-6 A |
| Sound Level | 50 dB |
| Display of markings on the connection terminals | Yes |
| Load Type | Not applicable |
| With electrical outlet | Yes |
| Contains battery and/or accumulator | Yes |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 88 mm |
| Output effective power (EF009897) | 800 W |
| With communication interface RS-232 (EF007312) | No |
| Voltage type (EF000187) | AC |
| Weight (EF000167) | 16.8 kg |
| Output apparent power (EF009898) | 1000 VA |
| Auto shut down function (EF009276) | Yes |
| Number of output connections fixed connection (EF009730) | 0 |
| Secondary frequency (EF009273) | 50 Hz |
| Primary frequency (EF009272) | 47 Hz |
| Number of phases primary (EF009275) | 1 |
| Potential free switch contact (EF003626) | Yes |
| USB interface (EF002039) | Yes |
| Number of output connections with protective contact CEE 7/3 (type F) (EF009729) | 0 |
| Number of output connections C19 (EF009728) | 0 |
| Overall efficiency (EF009406) | 82 % |
| Output power factor (EF009405) | 0.8 |
| Number of output connections C13 (EF009727) | 8 |
| Efficiency in eco-mode (EF009407) | 98 % |
| Input connection (EF009726) | C14 |
| Max. voltage distortion output (linear load) (EF009404) | 3 % |
| Suitable for network-management (EF000432) | Yes |
| Input voltage (EF003840) | 175 V |
| USV- technology (EF005380) | Line-interactive |
| SNMP (EF005284) | Yes |
| Depth (EF000049) | 440 mm |
| Output voltage (EF003933) | 208 V |
| Construction type (EF000767) | 482.6 mm (19 inch) device |
| Width (EF000008) | 440 mm |
| Bridging time full load (EF000428) | 3 min |
