View larger
Images are for illustrative purposes only. Please refer to data sheet for details

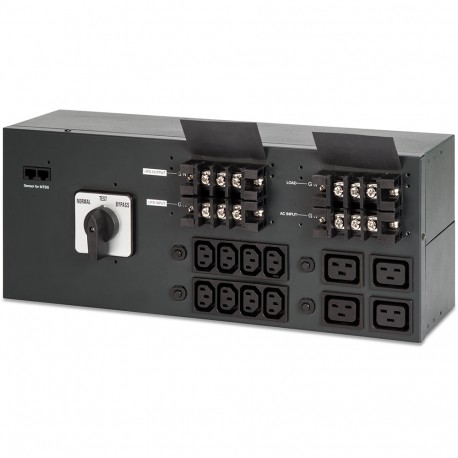

310963 LEGRAND MANUAL BY-PASS EXTERNAL 4.5 -
310963
310963
LEGRAND
1 Pcs.
MANUAL BY-PASS EXTERNAL 4.5 -
External manual bypass - for Daker DK 4500-6000-10000
External manual bypass for Darker DK inverters
Automation > Accessories/spare parts for UPS
SINGLE PHASE UPS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)42.271
- Weight (g)6 473.00
Product characteristics
Accessories- External manual Bypass for Cat.Nos 3 101 73/74/75/76/77
General characteristics
DAKER DK PLUS - On-line double conversion UPS (rack/tower) - single phase and three phase VFI- The main parameters of the UPS, including the battery charge level and faults, are displayed on the LCD screen on the front panel
- The integrated communication software not only controls the UPS and its switch-off if there is a malfunction, and enables the user to test the main functions remotely, communicate via SNMP/Internet/network adaptor and access the functions of the UPS via the Internet, but can also send the user an SMS if specific events occur
- The internal extension connector enables aWEB/SNMP card or a relay interface to be installed which provides insulated contacts for applications on industrial control panels or remote alarm panels
- If there is an electronic fault, overload, overheating or for scheduled maintenance operations, the automatic or manual (optional) bypass ensures continuity of the power supply for critical loads. A bypass switch is available for maintenance
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 176 mm |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
| Depth (EF000049) | 120 mm |
| Type of accessory/spare part (EF000215) | Bypass |
| Width (EF000008) | 440 mm |
