310663 LEGRAND CLOSET BAT. DK PLUS 5/6KVA
310663
310663
LEGRAND
1 Pcs.
Automation > Accessories/spare parts for UPS
SINGLE PHASE UPS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

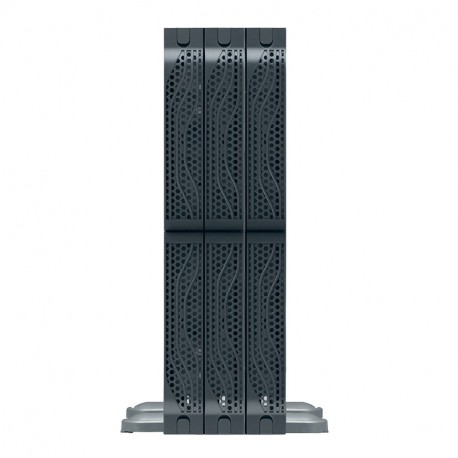

The 310663 closet bat. dk plus 5/6kva built by Legrand serves as a battery/accumulator module intended to provide robust energy reserve capacity for high-capacity power backup systems. External battery storage maintains system stability during major grid disturbances. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 88 mm
- Accessory (EF013236): Yes
- Spare part (EF013237): No
- Depth (EF000049): 680 mm
- Type of accessory/spare part (EF000215): Battery/accumulator
- Width (EF000008): 440 mm
More info
▲- Pack (number of units)1
- Volume (dm3)105.952
- Weight (g)42 000.00
- Battery cabinet for Cat.Nos 3 101 73/74/75/76
- The main parameters of the UPS, including the battery charge level and faults, are displayed on the LCD screen on the front panel
- The integrated communication software not only controls the UPS and its switch-off if there is a malfunction, and enables the user to test the main functions remotely, communicate via SNMP/Internet/network adaptor and access the functions of the UPS via the Internet, but can also send the user an SMS if specific events occur
- The internal extension connector enables aWEB/SNMP card or a relay interface to be installed which provides insulated contacts for applications on industrial control panels or remote alarm panels
- If there is an electronic fault, overload, overheating or for scheduled maintenance operations, the automatic or manual (optional) bypass ensures continuity of the power supply for critical loads. A bypass switch is available for maintenance
