View larger
Images are for illustrative purposes only. Please refer to data sheet for details

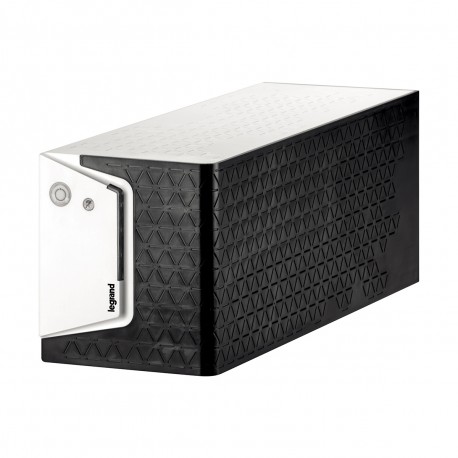

310181 LEGRAND SAI-KEOR SP 600 VA SCH
310181
310181
LEGRAND
1 Pcs.
SAI-KEOR SP 600 VA SCH
Keor SP UPS with 1 IEC + 1 German standard sockets - Single phase VI - 600 VA - 360 W - USB HID
Keor SP line interactive tower UPS with 1 Schuko output + 1 IEC - 600VA 360W
Automation > UPS
SINGLE PHASE UPS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)16.408
- Weight (g)5 594.00
Product characteristics
UPS with IEC + German standard socket- The stated backup time in minutes is estimated and may vary according to the load characteristics, operating conditions and environment
- Nominal power: : 600 VA
- Active power: : 360 W
- Backup time: : up to 15 min
- No. of sockets IEC + GER: : 1+1
- Communication ports: : USB HID
General characteristics
Keor SP - Single phase VI- Features:
- 3-colour LED bar
- Mute button
- Internal AVR (Automatic Voltage Regulator)
- USB Port
- Available outputs sockets in IEC, German or French type
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 138 mm |
| Output effective power (EF009897) | 360 W |
| With communication interface RS-232 (EF007312) | No |
| Voltage type (EF000187) | AC |
| Weight (EF000167) | 5 kg |
| Output apparent power (EF009898) | 600 VA |
| Auto shut down function (EF009276) | No |
| Number of output connections fixed connection (EF009730) | 0 |
| Secondary frequency (EF009273) | 49 Hz |
| Primary frequency (EF009272) | 45 Hz |
| Number of phases primary (EF009275) | 1 |
| Number of phases secondary (EF009274) | 1 |
| Potential free switch contact (EF003626) | No |
| USB interface (EF002039) | Yes |
| Number of output connections with protective contact CEE 7/3 (type F) (EF009729) | 1 |
| Number of output connections C19 (EF009728) | 0 |
| Overall efficiency (EF009406) | 96 % |
| Output power factor (EF009405) | 0.6 |
| Number of output connections C13 (EF009727) | 1 |
| Input connection (EF009726) | C14 |
| Suitable for network-management (EF000432) | No |
| Input voltage (EF003840) | 170 V |
| USV- technology (EF005380) | Line-interactive |
| SNMP (EF005284) | No |
| Depth (EF000049) | 330 mm |
| Output voltage (EF003933) | 207 V |
| Construction type (EF000767) | Free standing model |
| Width (EF000008) | 120 mm |
| Bridging time full load (EF000428) | 0 min |
