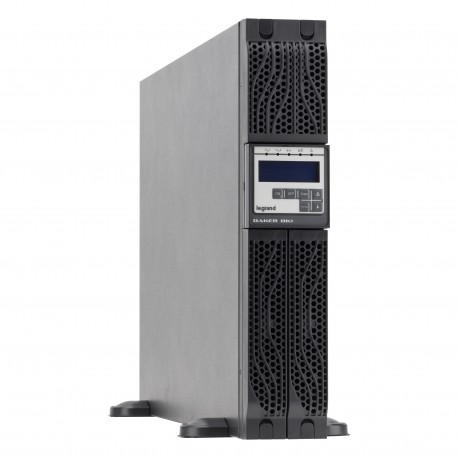

LEGRAND 310172 310172 LEGRAND UPS DK PLUS 3KVA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

310172 LEGRAND UPS DK PLUS 3KVA

310172

310172

LEGRAND

1 Pcs.

UPS DK PLUS 3KVA Daker DK Plus convertible UPS with battery - Single phase VFI - 3000 VA - 2700 W Daker DK Plus rack or tower UPS with 3000VA 2700W batteries

Automation > UPS
SINGLE PHASE UPS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 310172 LEGRAND UPS DK PLUS 3KVA is an uninterruptible power supply produced by Legrand to protect critical electrical loads and industrial control systems from power disruptions. Backup power systems maintain operational continuity by bridging utility outages and filtering out harmful line disturbances. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 440 mm
  • Output effective power (EF009897): 2700 W
  • Voltage type (EF000187): AC
  • Weight (EF000167): 30 kg
  • Output apparent power (EF009898): 3000 VA
  • Auto shut down function (EF009276): No
  • Secondary frequency (EF009273): 50 Hz
  • Primary frequency (EF009272): 47.5 Hz
  • Number of phases primary (EF009275): 1
  • Number of phases secondary (EF009274): 1
  • Potential free switch contact (EF003626): No
  • Number of output connections C19 (EF009728): 1
  • Overall efficiency (EF009406): 92 %
  • Output power factor (EF009405): 0.9
  • Number of output connections C13 (EF009727): 6
  • Efficiency in eco-mode (EF009407): 98 %

More info

▲
  • Pack (number of units)1
  • Volume (dm3)91.802
  • Weight (g)29 681.00
Product characteristics
Convertible UPS with batteries
Single phase
  • The stated backup time in minutes is estimated and may vary according to the load characteristics, operating conditions and environment
  • Nominal power: : 3000 VA
  • Active power: : 2700 W
  • Backup time: : 7 min
  • Weight: : 30 kg
General characteristics
DAKER DK PLUS - On-line double conversion UPS (rack/tower) - single phase and three phase VFI
  • The main parameters of the UPS, including the battery charge level and faults, are displayed on the LCD screen on the front panel
  • The integrated communication software not only controls the UPS and its switch-off if there is a malfunction, and enables the user to test the main functions remotely, communicate via SNMP/Internet/network adaptor and access the functions of the UPS via the Internet, but can also send the user an SMS if specific events occur
  • The internal extension connector enables aWEB/SNMP card or a relay interface to be installed which provides insulated contacts for applications on industrial control panels or remote alarm panels
  • If there is an electronic fault, overload, overheating or for scheduled maintenance operations, the automatic or manual (optional) bypass ensures continuity of the power supply for critical loads. A bypass switch is available for maintenance
