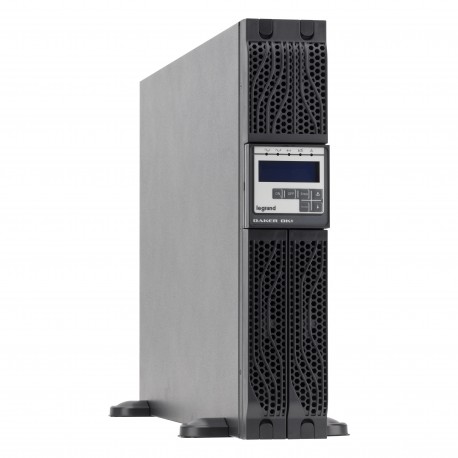

310171 LEGRAND UPS DK PLUS 2KVA
310171
310171
LEGRAND
1 Pcs.
UPS DK PLUS 2KVA
Daker DK Plus convertible UPS with battery - Single phase VFI - 2000 VA - 1800 W
Daker DK Plus rack or tower UPS with 2000VA 1800W batteries
Automation > UPS
SINGLE PHASE UPS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An uninterruptible power supply unit protects essential electronic loads against grid failures, surges, and blackouts in commercial or industrial settings. Systems of this class provide temporary battery support to ensure safe system shutdowns.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 440 mm
- Output effective power (EF009897): 1800 W
- Voltage type (EF000187): AC
- Weight (EF000167): 29.5 kg
- Output apparent power (EF009898): 2000 VA
- Auto shut down function (EF009276): No
- Secondary frequency (EF009273): 50 Hz
- Primary frequency (EF009272): 47.5 Hz
- Number of phases primary (EF009275): 1
- Number of phases secondary (EF009274): 1
- Potential free switch contact (EF003626): No
- Overall efficiency (EF009406): 91 %
- Output power factor (EF009405): 0.9
- Number of output connections C13 (EF009727): 6
- Efficiency in eco-mode (EF009407): 97 %
- Input connection (EF009726): C14
More info
▲- Pack (number of units)1
- Volume (dm3)91.448
- Weight (g)26 000.00
Product characteristics
Convertible UPS with batteriesSingle phase
- The stated backup time in minutes is estimated and may vary according to the load characteristics, operating conditions and environment
- Nominal power: : 2000 VA
- Active power: : 1800 W
- Backup time: : 10 min
- Weight: : 29.5 kg
General characteristics
DAKER DK PLUS - On-line double conversion UPS (rack/tower) - single phase and three phase VFI- The main parameters of the UPS, including the battery charge level and faults, are displayed on the LCD screen on the front panel
- The integrated communication software not only controls the UPS and its switch-off if there is a malfunction, and enables the user to test the main functions remotely, communicate via SNMP/Internet/network adaptor and access the functions of the UPS via the Internet, but can also send the user an SMS if specific events occur
- The internal extension connector enables aWEB/SNMP card or a relay interface to be installed which provides insulated contacts for applications on industrial control panels or remote alarm panels
- If there is an electronic fault, overload, overheating or for scheduled maintenance operations, the automatic or manual (optional) bypass ensures continuity of the power supply for critical loads. A bypass switch is available for maintenance
