View larger
Images are for illustrative purposes only. Please refer to data sheet for details

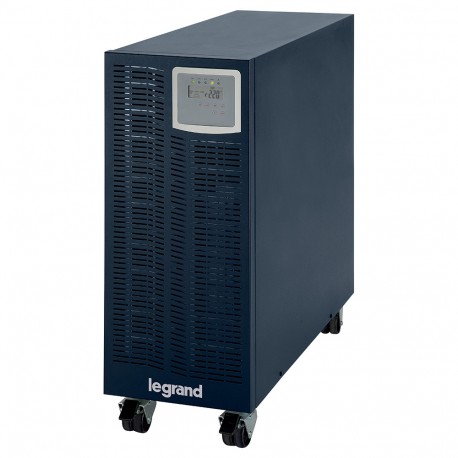

310131 LEGRAND UPS KEOR T 10 KVA 8 MIN
310131
310131
LEGRAND
1 Pcs.
UPS KEOR T 10 KVA 8 MIN
On-line double conversion UPS - 10000 VA - 9000 W- backup time 10 min
Keor S - 10kVA single-phase UPS - 8 minutes
Automation > UPS
SINGLE PHASE UPS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)299.20
- Weight (g)127 900.00
Product characteristics
UPS- The stated backup time in minutes is estimated and may vary according to the load characteristics, operating conditions and environment
- Nominal power: : 10000 VA
- Active power: : 9000 W
- Backup time: : 10 min
- Weight: : 114 kg
General characteristics
Keor S - On-line double conversion UPS (tower) - single phase- For industrial environment (food industry, laboratories ...) or applications requiring long backup time (electro-medical ...)
- Installation: downstream power generators. Possibility to add batteries for extended autonomy. Parallel connection possible: up to 4 UPSs. Advanced management depending on the battery discharge level
- Sinusoidal output
- LCD screen
- Self-diagnosis
- Power factor: 0.9
- Integrated automatic bypass and maintenance bypass. Integrated slot for installing a communication interface for Ethernet network connection, to be ordered separately
- Cold Start Function. Microprocessor control
- Telephone line/Internet (RJ 11/RJ 45)
- Remote emergency shutdown function (''Emergency Power Off'' - EPO). Equipped with 4 wheels for easy moving of the UPS
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 716 mm |
| Output effective power (EF009897) | 9000 W |
| Voltage type (EF000187) | AC |
| Weight (EF000167) | 114 kg |
| Output apparent power (EF009898) | 10000 VA |
| Auto shut down function (EF009276) | No |
| Number of output connections fixed connection (EF009730) | 1 |
| Secondary frequency (EF009273) | 50 Hz |
| Primary frequency (EF009272) | 45 Hz |
| Number of phases primary (EF009275) | 1 |
| Number of phases secondary (EF009274) | 1 |
| Potential free switch contact (EF003626) | No |
| Overall efficiency (EF009406) | 91 % |
| Output power factor (EF009405) | 0.9 |
| Efficiency in eco-mode (EF009407) | 97 % |
| Input connection (EF009726) | Fixed connection |
| Max. voltage distortion output (linear load) (EF009404) | 1.5 % |
| Suitable for network-management (EF000432) | Yes |
| Input voltage (EF003840) | 195 V |
| USV- technology (EF005380) | Online |
| SNMP (EF005284) | Yes |
| Depth (EF000049) | 776 mm |
| Output voltage (EF003933) | 220 V |
| Construction type (EF000767) | Free standing model |
| Width (EF000008) | 275 mm |
| Bridging time full load (EF000428) | 8 min |
