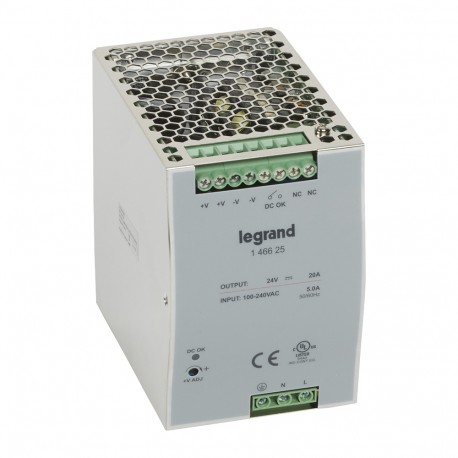

146625 LEGRAND ALIM.ESTB.100-240VCA24VCC 20A

146625

146625

LEGRAND

1 Pcs.

ALIM.ESTB.100-240VCA24VCC 20A Stabilised switched modules power supply -single-phase -75-960 W-output 24 V= -480 W Switching power supply, single-phase 480W - 20A - 24V=

Automation > DC-power supply
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Industrial-grade power supply units deliver high-capacity direct current to drive large automated production lines and heavy machinery components. This Legrand 146625 unit provides regulated energy distribution designed to maintain peak operational performance.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Power output (EF003034): 480 W
  • Height (EF000040): 125 mm
  • Wall mounting possible (EF003973): No
  • Suitable for safety functions (EF001597): Yes
  • Suitable for rail mounting (EF003972): Yes
  • Output voltage stabilized (EF003092): Yes
  • Rated supply voltage AC 50 Hz (EF007076): 100 V
  • Rated supply voltage AC 60 Hz (EF007077): 88 V
  • Rated supply voltage DC (EF007078): 124 V
  • Short-circuit-proof (EF007332): Yes
  • Nominal value output voltage 1 (EF009393): 24 V
  • Max. output current 1 (EF008284): 20 A
  • Nominal value output current 1 (EF009396): 20 A
  • Modular version (EF001126): No
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Direct mounting possible (EF005689): Yes

More info

▲
  • Pack (number of units)1
  • Volume (dm3)3.241
  • Weight (g)1 678.00
Product characteristics
Single-phase 75 - 960 W for loads with strong inrush current
  • Ability to supply temporary overcurrents (up to 150% for 3 sec)
  • High efficiency (up to 94%)
  • Low harmonic pollution due to the integrated PFC filter (from 120 W)
  • Adjustable output voltage
  • Aluminium casing
Input voltage: 100 to 240 V~ Output voltage: 24 V=
  • Nominal power : 480 W
  • Nominal rating : 20 A
  • Setting range : 24 to 28 V
  • Width : 86 mm
General characteristics
Stabilised switched mode power supplies - single-phase
  • Conforming to standards UL 508, IEC EN 60950-1 and IEC EN 61204-3
  • UL-approved in USA and Canada
  • Operating frequency: 50/60 Hz
  • Output voltage present indicator
  • Potentiometer for adjusting the output voltage on front panel
  • With signal or relay contact for feedback on the status of the active output voltage (except 75 W)
  • Connection with copper conductors only
  • For mounting on a symmetrical rail depth 7.5 mm and 15 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
