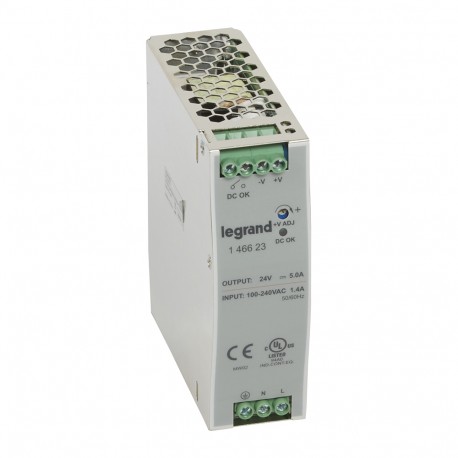

146623 LEGRAND ALIM.ESTB.100-240VCA24VCC 5A
146623
146623
LEGRAND
1 Pcs.
ALIM.ESTB.100-240VCA24VCC 5A
Stabilised switched modules power supply -single-phase -75-960 W-output 24 V= -120 W
Switching power supply, single-phase 120W - 5A - 24V=
Automation > DC-power supply
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
146623 Legrand ALIM.ESTB.100-240VCA24VCC 5A functions as an industrial switch mode power supply, transforming main voltages into stabilized low-voltage direct current to keep control systems running continuously.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Power output (EF003034): 120 W
- Height (EF000040): 125 mm
- Wall mounting possible (EF003973): No
- Suitable for safety functions (EF001597): Yes
- Suitable for rail mounting (EF003972): Yes
- Output voltage stabilized (EF003092): Yes
- Rated supply voltage AC 50 Hz (EF007076): 100 V
- Rated supply voltage AC 60 Hz (EF007077): 88 V
- Rated supply voltage DC (EF007078): 124 V
- Short-circuit-proof (EF007332): Yes
- Nominal value output voltage 1 (EF009393): 24 V
- Max. output current 1 (EF008284): 5 A
- Nominal value output current 1 (EF009396): 5 A
- Modular version (EF001126): No
- Voltage type (supply voltage) (EF002991): AC/DC
- Direct mounting possible (EF005689): Yes
More info
▲- Pack (number of units)1
- Volume (dm3)1.445
- Weight (g)701.00
Product characteristics
Single-phase 75 - 960 W for loads with strong inrush current- Ability to supply temporary overcurrents (up to 150% for 3 sec)
- High efficiency (up to 94%)
- Low harmonic pollution due to the integrated PFC filter (from 120 W)
- Adjustable output voltage
- Aluminium casing
- Nominal power : 120 W
- Nominal rating : 5 A
- Setting range : 24 to 28 V
- Width : 40 mm
General characteristics
Stabilised switched mode power supplies - single-phase- Conforming to standards UL 508, IEC EN 60950-1 and IEC EN 61204-3
- UL-approved in USA and Canada
- Operating frequency: 50/60 Hz
- Output voltage present indicator
- Potentiometer for adjusting the output voltage on front panel
- With signal or relay contact for feedback on the status of the active output voltage (except 75 W)
- Connection with copper conductors only
- For mounting on a symmetrical rail depth 7.5 mm and 15 mm
