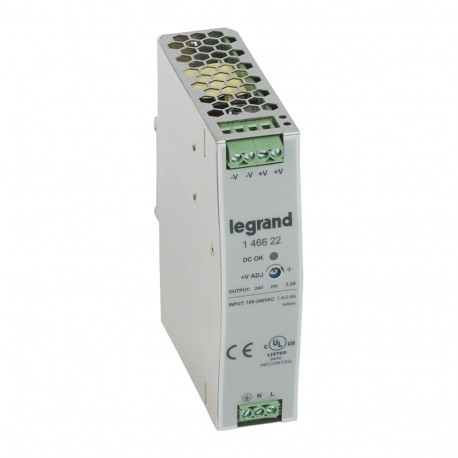

LEGRAND 146622 146622 LEGRAND ALIM.ESTB.100-240VCA24VCC 3.2 TO View larger
Images are for illustrative purposes only. Please refer to data sheet for details

146622 LEGRAND ALIM.ESTB.100-240VCA24VCC 3.2 TO

146622

146622

LEGRAND

1 Pcs.

ALIM.ESTB.100-240VCA24VCC 3.2 TO Stabilised switched modules power supply - single-phase -75-960 W-output 24 V= -75 W Switching power supply, single-phase 75W - 3.2A - 24V=

Automation > DC-power supply
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 146622 is a stabilized power supply unit engineered to deliver safe, regulated DC voltage for industrial control panels and safety-related circuit loops.

Regulated power supplies protect downstream automation electronics from line transients and voltage dips across complex machine manufacturing setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Power output (EF003034): 75 W
  • Height (EF000040): 125 mm
  • Wall mounting possible (EF003973): No
  • Suitable for safety functions (EF001597): Yes
  • Suitable for rail mounting (EF003972): Yes
  • Output voltage stabilized (EF003092): Yes
  • Rated supply voltage AC 50 Hz (EF007076): 100 V
  • Rated supply voltage AC 60 Hz (EF007077): 88 V
  • Rated supply voltage DC (EF007078): 124 V
  • Short-circuit-proof (EF007332): Yes
  • Nominal value output voltage 1 (EF009393): 24 V
  • Max. output current 1 (EF008284): 3.2 A
  • Nominal value output current 1 (EF009396): 3.2 A
  • Modular version (EF001126): No
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Direct mounting possible (EF005689): Yes

More info

▲
  • Pack (number of units)1
  • Volume (dm3)1.101
  • Weight (g)515.00
Product characteristics
Single-phase 75 - 960 W for loads with strong inrush current
  • Ability to supply temporary overcurrents (up to 150% for 3 sec)
  • High efficiency (up to 94%)
  • Low harmonic pollution due to the integrated PFC filter (from 120 W)
  • Adjustable output voltage
  • Aluminium casing
Input voltage: 100 to 240 V~ Output voltage: 24 V=
  • Nominal power : 75 W
  • Nominal rating : 3.2 A
  • Setting range : 24 to 28 V
  • Width : 32 mm
General characteristics
Stabilised switched mode power supplies - single-phase
  • Conforming to standards UL 508, IEC EN 60950-1 and IEC EN 61204-3
  • UL-approved in USA and Canada
  • Operating frequency: 50/60 Hz
  • Output voltage present indicator
  • Potentiometer for adjusting the output voltage on front panel
  • With signal or relay contact for feedback on the status of the active output voltage (except 75 W)
  • Connection with copper conductors only
  • For mounting on a symmetrical rail depth 7.5 mm and 15 mm
