View larger
Images are for illustrative purposes only. Please refer to data sheet for details

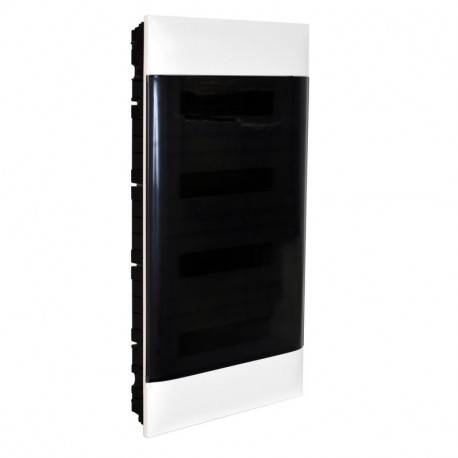

135074 LEGRAND BOX EMP 4X12 PT.PRACTIBOX S
135074
135074
LEGRAND
1 Pcs.
BOX EMP 4X12 PT.PRACTIBOX S
Practibox S flush-mounting cabinet for dry partition - earth terminal blocks - smoked door - 4 rows - 12 modules per row
Practibox S Recessed Box transparent door 4x12mod - for prefabricated partition
Automation > Small distribution board
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)29.477
- Weight (g)2 975.00
Product characteristics
Cabinets supplied with earth terminal blocks- Smoked Transparent door
- Number of rows : 4
- Number of modules per row : 4
- Total number of modules : 48
- Height : 765 mm
- Width : 328 mm
- Depth : 103 mm
General characteristics
Practibox S - flush-mounting cabinets for dry partitions from 4 to 72 modules- Allows to achieve assemblies conform to IEC 61439-3
- IP40 IK07
- Class II
- Plastic material
- Supplied with door
- For dry partitions
- 850° fireproof flush-mounting plastic boxes
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 765 mm |
| Type of door (EF004464) | EV000426 |
| Inner depth (EF001131) | 72 mm |
| Transparent cover/door (EF006244) | Yes |
| Type of closure (EF004462) | Cylinder |
| Degree of protection (IP) (EF005474) | IP40 |
| DIN-rail (EF001134) | Yes |
| Housing material (EF001596) | Plastic |
| With lock (EF006306) | Yes |
| Mounting method (EF000003) | Flush mounted |
| Number of rows (EF000266) | 4 |
| Cover model (EF009212) | With notch |
| Signal passing door (EF015941) | Yes |
| RAL-number (EF000116) | 9003 |
| Built-in depth (EF000218) | 72 mm |
| Type of covering (EF000339) | Door |
| With mounting plate (EF000118) | No |
| Extension possible (EF001088) | Yes |
| Width in number of modular spacings (EF002950) | 12 |
| Built-in height (EF000332) | 761 mm |
| EMC-version (EF001062) | No |
| Neutral terminal block (EF015777) | No |
| Earthing terminal block (EF015776) | Yes |
| Depth (EF000049) | 103 mm |
| Colour (EF000007) | White |
| Width (EF000008) | 328 mm |
| Built-in width (EF000846) | 324 mm |
