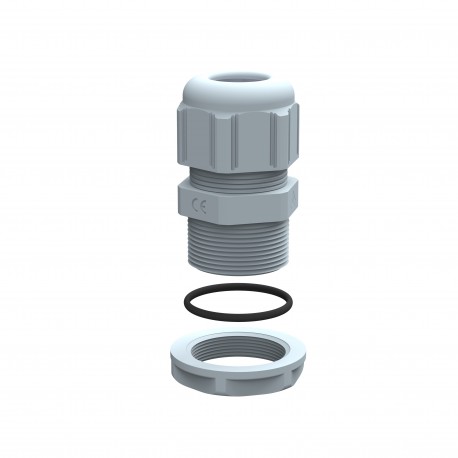

LEGRAND 098026 098026 LEGRAND GLAND IP68 PG 29 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

098026 LEGRAND GLAND IP68 PG 29

098026

098026

LEGRAND

5 Pcs.

GLAND IP68 PG 29 Cable gland plastic - IP68 - PG 29 - clamping capacity 18-25 mm - RAL 7001 Plastic cable gland - IP68 - PG 29 - RAL 7001

Cables > Cable gland
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

098026 LEGRAND GLAND IP68 PG 29 operates as a cable gland built by Legrand. This hardware is standard in industrial control cabinets for routing cables safely through enclosure walls while maintaining high protection ratings against dust and water.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Flat cable coupling (EF004685): No
  • Shock resistant (EF000084): Yes
  • Degree of protection (IP) (EF005474): IP68
  • Material (EF002169): Plastic
  • Separable screw gland (EF005337): No
  • Glass-fibre reinforced (EF001210): No
  • Halogen free (EF000025): Yes
  • Material quality (EF001257): Polyamide (PA)
  • Operating temperature (EF001742): -20 °C
  • Surface protection (EF000139): Untreated
  • RAL-number (EF000116): 7001
  • Bend radius protection/trumpet flare (EF000734): No
  • Suitable for cable diameter (EF005466): 5 mm
  • Model (EF000010): Straight
  • Wrench width (EF000177): 22 mm
  • With locknut (EF005049): Yes

More info

▲
  • Pack (number of units)5
  • Volume (dm3)1.409
  • Weight (g)266.00
Product characteristics
Grey RAL 7001 cable glands
  • Anti-vibration mechanically tightened cable gland with neoprene weatherproof seal for IP 68 protection
  • Locking part consisting of flexible blades which exert strong pressure on the cable thus giving the product excellent tensile strength
  • Supplied with surface seal and locking nut mounted
PG
  • Conform to UTE C 68-300 and 68-311 guides recommendations
  • PG : 29
  • Clamping capacity Ø Min. : 18 mm
  • Clamping capacity Ø Max. : 25 mm
General characteristics
Plastic cable glands IP 68 - ISO and PG
