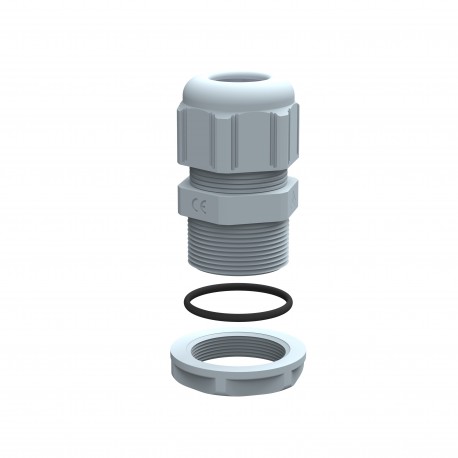

098024 LEGRAND GLAND IP68 PG 16
098024
098024
LEGRAND
20 Pcs.
GLAND IP68 PG 16
Cable gland plastic - IP68 - PG 16 - clamping capacity 10-14 mm - RAL 7001
Plastic cable glands - IP68 - PG 16 - RAL 7001
Cables > Cable gland
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand cable gland (098024) functions as a protective mechanical entry interface for cables passing through machine housings or junction boxes, ensuring secure clamping and liquid sealing.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Flat cable coupling (EF004685): No
- Shock resistant (EF000084): Yes
- Degree of protection (IP) (EF005474): IP68
- Material (EF002169): Plastic
- Separable screw gland (EF005337): No
- Glass-fibre reinforced (EF001210): No
- Halogen free (EF000025): Yes
- Material quality (EF001257): Polyamide (PA)
- Operating temperature (EF001742): -20 °C
- Surface protection (EF000139): Untreated
- RAL-number (EF000116): 7001
- Bend radius protection/trumpet flare (EF000734): No
- Suitable for cable diameter (EF005466): 18 mm
- Model (EF000010): Straight
- Wrench width (EF000177): 42 mm
- With locknut (EF005049): Yes
More info
▲- Pack (number of units)20
- Volume (dm3)1.408
- Weight (g)404.00
Product characteristics
Grey RAL 7001 cable glands- Anti-vibration mechanically tightened cable gland with neoprene weatherproof seal for IP 68 protection
- Locking part consisting of flexible blades which exert strong pressure on the cable thus giving the product excellent tensile strength
- Supplied with surface seal and locking nut mounted
- Conform to UTE C 68-300 and 68-311 guides recommendations
- PG : 16
- Clamping capacity Ø Min. : 10 mm
- Clamping capacity Ø Max. : 14 mm
General characteristics
Plastic cable glands IP 68 - ISO and PG
