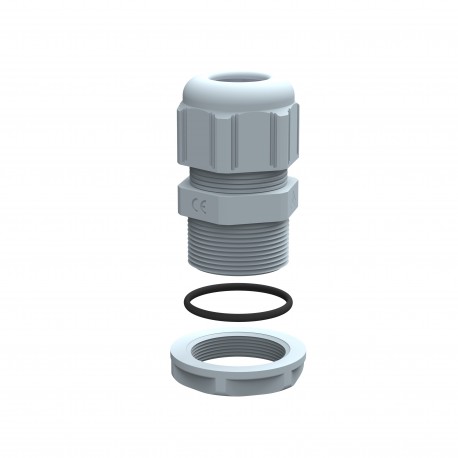

LEGRAND 098021 098021 LEGRAND GLAND IP68 PG-9 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

098021 LEGRAND GLAND IP68 PG-9

098021

098021

LEGRAND

25 Pcs.

GLAND IP68 PG-9 Cable gland plastic - IP68 - PG 9 - clamping capacity 4-8 mm - RAL 7001 Plastic cable gland - IP68 - PG 9 - RAL 7001

Cables > Cable gland
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand IP68 PG-9 cable gland 098021 provides a shock-resistant, halogen-free plastic sealing solution for secure wire entry into control panels and junction boxes. High-protection cable glands prevent moisture and particulate ingress in demanding industrial automation applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Flat cable coupling (EF004685): No
  • Shock resistant (EF000084): Yes
  • Degree of protection (IP) (EF005474): IP68
  • Material (EF002169): Plastic
  • Separable screw gland (EF005337): No
  • Glass-fibre reinforced (EF001210): No
  • Halogen free (EF000025): Yes
  • Material quality (EF001257): Polyamide (PA)
  • Operating temperature (EF001742): -20 °C
  • Surface protection (EF000139): Untreated
  • RAL-number (EF000116): 7001
  • Bend radius protection/trumpet flare (EF000734): No
  • Suitable for cable diameter (EF005466): 12 mm
  • Model (EF000010): Straight
  • Wrench width (EF000177): 33 mm
  • With locknut (EF005049): Yes

More info

▲
  • Pack (number of units)25
  • Volume (dm3)1.06
  • Weight (g)250.00
Product characteristics
Grey RAL 7001 cable glands
  • Anti-vibration mechanically tightened cable gland with neoprene weatherproof seal for IP 68 protection
  • Locking part consisting of flexible blades which exert strong pressure on the cable thus giving the product excellent tensile strength
  • Supplied with surface seal and locking nut mounted
PG
  • Conform to UTE C 68-300 and 68-311 guides recommendations
  • PG : 9
  • Clamping capacity Ø Min. : 4 mm
  • Clamping capacity Ø Max. : 8 mm
General characteristics
Plastic cable glands IP 68 - ISO and PG
